Manufacturer of Optical Spectrometers, Camera Systems for OEM Industrial Applications
Deep Cooled UV/Vis/NIR and VUV Scientific Cameras
TE and cryogenically cooled CCD scientific cameras for ultra sensitivity from 120 nm to 1100 nm
HORIBA Scientific offers a complete line of spectroscopic multi-channel detectors for scientific research. For spectral detection from UV to near-IR, two dimensional CCDs offering a faster acquisition option over single point detectors with relatively high sensitivity. Coupled with HORIBA’s range of aberration corrected flat field imaging spectrographs, OEM packages can be assembled for a variety of applications.
Features
|
|
Cooling |
Type* |
Peak QE |
Array Dimension |
Pixel Size |
|---|---|---|---|---|---|
|

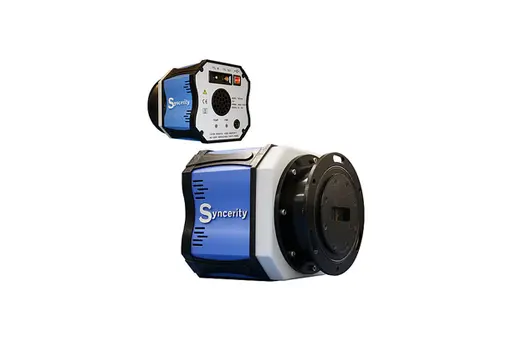

Syncerity |
TE -50°C |
BI UV-VIS |
78% |
2048 x 70 |
14 µm x 14 µm |
|
TE -60°C |
FI-UV-VIS |
58% |
1024 x 256 |
26 µm x 26 µm |
|
| TE –50°C | BI-NIR | 80% | 2048 x 70 | 14 µm x 14 µm | |
| TE –50°C | VUV | 58% | 2048 × 70 | 14 μm × 14 μm |
