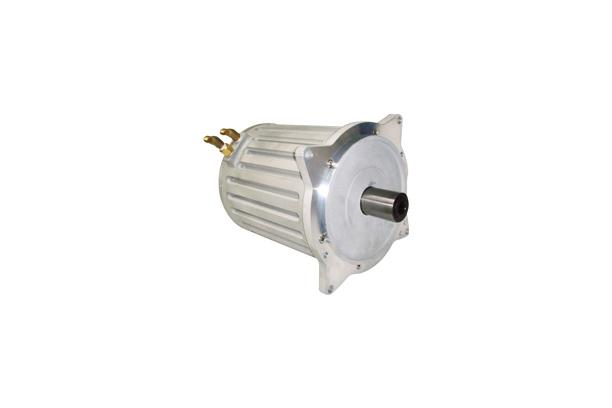

1. Features
- Reduction of Loss by the use of High-End Electrical Steel Sheet, and Expansion of Torque Maintaining Area at High Speed (High Frequency Range)
- Improvement of Winding Insulation, Heat Transfer and Durability by the Stator Vacuum Impregnation
- Realization of Lightweight through the Design with Magnetic Field Analysis
- Use of High Reliability SPEED SENSOR
- Use of Electric Wire which is exclusive for Vehicle
- Noise and Wear Reduction by improving of Precision Degree of Coupling Connection.
- Maximization of Cooling Effect through the Use of Aluminum Frame to get High Power Density, and by the Cooling System Design
- Realization of Miniaturization and Lightweight through High Power Density(kW/kg)
▷ Maximization of Cooling Effect of the Heat generated by the High Current Density of Winding through the Use of Aluminum Frame and Water-Cooled Cooling System.
▷ Application of High-End Electrical Steel Sheet with Low Core-Loss and High Permissible Magnetic Flux.
- Securing of Structural Strength Stability in High Speed Area
- Spline Shaft Driving Method
- Reinforcement of Insulation Performance prepared for Inverter Surge Voltage
Specification
18KW
GENERAL SPECIFICATIONS HIGENMOTORS STANDARD
| Rated Power | 9 kW |
|---|---|
| Rated Voltage | 145 VAC |
| Rated Torque | 34.4 Nm |
| Rated Speed | 2,500 rpm |
| Efficiency | 89% |
| Max. Speed | 9,000 rpm |
| Weight | 31kg |
| Winding scheme | Delta |
| Insulation class | F |
| Cooling | Water (Max 55℃) |
PERFORMANCE DATA
| Ratings @ 145VAC | Nominal | Max. power | Unit | Remark |
|---|---|---|---|---|
| Power | 9 | 18 | KW | |
| Rating | 60 min | 2 min | - | From Cold state |
| Torque | 34.4 | 89.5 | N.m | |
| Phase current | 52 | 127 | A | |
| Speed | 2,500 | 1,920 | RPM | |
| Motor efficiency | 89.9 | 82.0 | % | |
| Power Factor(Cos phi) | 0.77 | 0.69 | - | |
| Mechanical Max. speed | 9,000 | RPM |
CHARACTERISTIC CURVES WITH INVERTER
OUTLINE DIMENSIONS
60KW
GENERAL SPECIFICATIONS HIGENMOTORS STANDARD
| Rated Power | 30 kW |
| Rated Voltage | 212 VAC |
| Rated Torque | 72 Nm |
| Rated Speed | 4,000 rpm |
| Efficiency | 92% |
| Max. Speed | 9,000 rpm |
| Weight | 59kg |
| Winding scheme | Delta |
| Insulation class | F |
| Cooling | Water (Max 55℃) |
PERFORMANCE DATA
| Ratings @ 212VAC | Nominal | Max. power | Unit | Remark |
|---|---|---|---|---|
| Power | 30 | 60 | KW | |
| Rating | 60 min | 2 min | - | From Cold state |
| Torque | 72 | 186 | N.m | |
| Phase current | 110 | 242 | A | |
| Speed | 4,000 | 3,080 | RPM | |
| Motor efficiency | 92 | 89 | % | |
| Power Factor(Cos phi) | 0.81 | 0.76 | - | |
| Mechanical Max. speed | 9,000 | RPM |
CHARACTERISTIC CURVES WITH INVERTER
OUTLINE DIMENSIONS
120KW
GENERAL SPECIFICATIONS HIGENMOTORS STANDARD
| Rated Power | 60 kW |
| Rated Voltage | 240 VAC |
| Rated Torque | 164 Nm |
| Rated Speed | 3,500 rpm |
| Efficiency | 93.5% |
| Max. Speed | 10,000 rpm |
| Weight | 94kg |
| Winding scheme | Delta |
| Insulation class | F |
| Cooling | Water (Max 55℃) |
PERFORMANCE DATA
| Ratings @ 240VAC | Nominal | Max. power | Unit | Remark |
|---|---|---|---|---|
| Power | 60 | 120 | KW | |
| Rating | 60 min | 2 min | - | From Cold state |
| Torque | 164 | 426 | N.m | |
| Phase current | 217.5 | 472 | A | |
| Speed | 3,500 | 2,689 | RPM | |
| Motor efficiency | 93.5 | 90 | % | |
| Power Factor (Cos phi) | 0.71 | 0.68 | - | |
| Mechanical Max. speed | 10,000 | RPM |
CHARACTERISTIC CURVES WITH INVERTER
OUTLINE DIMENSIONS
