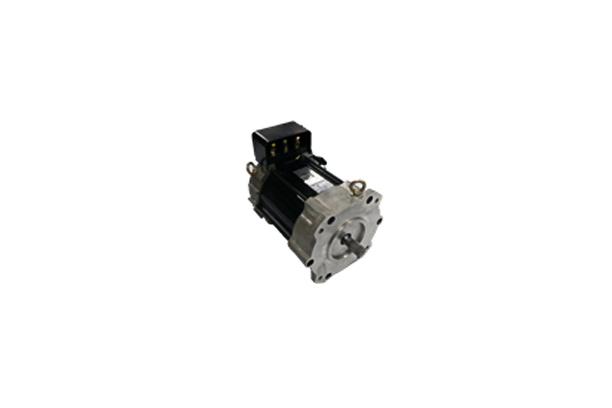

HIGEN MOTOR
HIGEN MOTOR
Description
특장점
- 고출력밀도로 소형, 경량화 실현
- 고속구동 가능
- 간단한 구조 및 공냉식 냉각구조
- 온도센서 속도센서(Hall Effect Sensor) 장착
제원표
Motor Specification
| Item | Spec | Item | Spec |
|---|---|---|---|
| Motor Type | IM Induction Motor | Model | TBD |
| Cooling Method | Air | Liquid Inlet | - |
| Peak Power | 17kW @ 1475r/min | Rated Power | 7.5kW |
| Peak Power Speed | 1475r/min | Rated Speed | 2800 r/min |
| Peak Torque | 110N.m | Rated Torque | 26N.m |
| Motor Voltage | 45Vac | Max Motor Speed | 6000r/min |
| Insulation Class | ↑ F Class | Dimension | Refer to Drawing |
| Speed Sensor | Hall sensor | Temp. Sensor | NTC |
| Weight | 40kg | - | - |
Torque & Power Curve
