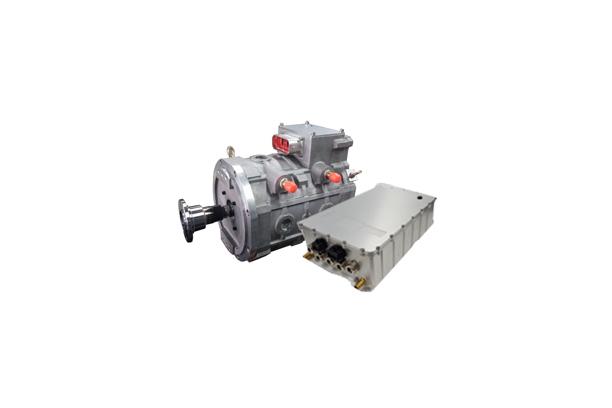

HIGEN MOTOR
HIGEN MOTOR
Description
특장점
ㆍSeries HEV 버스, Truck 등에 최적화 설계
ㆍ고출력밀도로 소형, 경량화 실현
- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용
ㆍ구조강도 안정성확보로 고속영역사용
ㆍSpline 혹은 Round Shaft
ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계
ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)
제원표
Motor Specification
| Item | Spec | Item | Spec |
|---|---|---|---|
| Motor Type | IPMSM Interior Permanent Magnet Synchronous Motor | Model | TBD |
| Cooling Method | Water Glycol | Liquid Inlet | ↑12 litter/min |
| Peak Power | 90kW @ 1430r/min | Rated Power | 55kW |
| Peak Power Speed | 1430 r/min | Rated Speed | 2200 r/min |
| Peak Torque | 600N.m | Rated Torque | 240 N.m |
| Motor Voltage | 480Vac | Max Motor Speed | 4000r/min |
| Insulation Class | ↑ F Class | Protection Degree | IP67 |
| Weight | 97kg | Dimension | Refer to Drawing |
| Speed Sensor | Resolver | Temp. Sensor | NTC |
Torque & Power Curve
Specification of Inverter for Traction Motor
| No. | Item | Detail | Unit | Specification |
|---|---|---|---|---|
| 1 | Output Power | Rated Power | [kW] | 75 |
| Peak Power | [kW] | 150 | ||
| 2 | Input power battery | Rated Voltage | [Vdc] | 650 |
| Max. Voltage | [Vdc] | 750 | ||
| Min. Voltage | [Vdc] | 432 | ||
| 3 | Cooling | Type | - | Water |
| Inlet Temperature | [℃] | 65↓ | ||
| Flowing Rate | [ℓ/min] | 12 | ||
| 4 | Electrical | Communication | - | CAN |
| Operating Control Voltage | [Vdc] | 12~24 | ||
| 5 | Mechanical | Dimension(W*D*H) | [mm] | 313*460*120 (Excluding Plug In Part) |
| Ingress Protection Rating | - | IP67 | ||
| 6 | Feedback | Position Sensor | - | Resolver |
