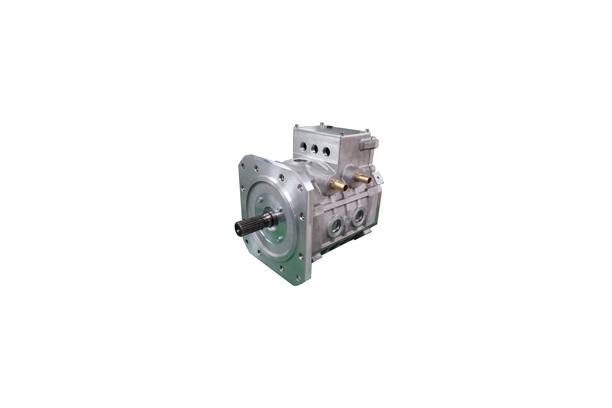

HIGEN MOTOR
HIGEN MOTOR
Description
특장점
ㆍ고출력밀도로 소형, 경량화 실현
- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용
ㆍ구조강도 안정성확보로 고속영역사용
ㆍSpline 혹은 Round Shaft
ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계
ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)
ㆍ배터리 전압변동에 강인한 제어기
ㆍMTPA(maximum torque per ampere) 기법을 적용한 고효율제어
제원표
Motor Specification
| Item | Spec | Item | Spec |
|---|---|---|---|
| Motor Type | IPMSM Interior Permanent Magnet Synchronous Motor | Model | TBD |
| Cooling Method | Water Glycol | Liquid Inlet | ↑ 12 litter/min |
| Peak Power | 110kW @ 3180r/min | Rated Power | 60kW |
| Peak Power Speed | 3180 r/min | Rated Speed | 3500 r/min |
| Peak Torque | 330 N.m | Rated Torque | 164 N.m |
| Motor Voltage | 360 Vdc | Max Motor Speed | 10000 r/min |
| Insulation Class | ↑H Class | Protection Degree | IP66 |
| Weight | 63kg | Dimension | Refer to Drawing |
| Speed Sensor | Resolver | Temp. Sensor | NTC |
Torque & Power Curve
