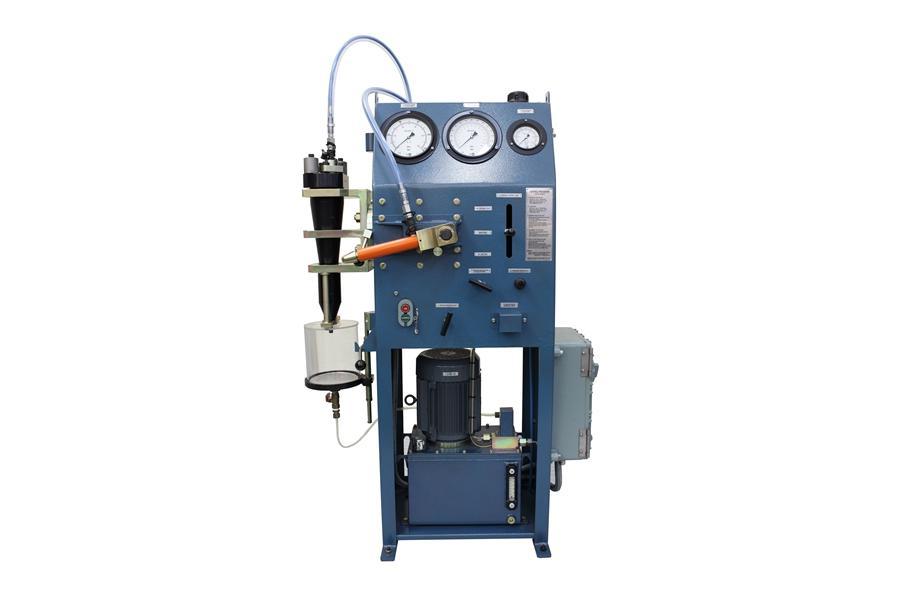

product Image
Fuel Valve Test Device
Model Name
VTU-2100F
Series
Fuel Valve Test Device
Data
-
Manufacturer information
provider logo
HANMI HYDRAULIC MACHINERY

Manufacturer of oil pressure machinery in vessel engine, high pressure pump unit, fule valve test device and more

Problem with product info?
Update request
Manufacturer
HANMI HYDRAULIC MACHINERY
Product Type
Machine
Brand
-
SKU
90393
Product Name
Fuel Valve Test Device
Model Name
VTU-2100F
Size
-
Weight
-
Product Details

SPECIFICATION

▸The VTU-2100F series ensures Fuel Valve Test for Wartsila diesel engine, model RT-FLEX Series.

▸Fuel Valve Tester to be done by Electric Pump Unit which can perform test of Valve Opening Pressure and Valve leakage.

▸Dismantling and Assembling of Valve Cap Nut to be done by Air Booster Pump.



1. MODEL NO. : VTU-2100F

2. Voltage / Frequency : 3ph × 440V × 60Hz

3. Electric pump

Delivery flow : 4.4L/min at 1720 rpm

Stroke volume: 2.62㎤ / rev.

Electric motor: 3.7kw × 440V × 60Hz

Oil tank capacity: 20 Liter

Pressure setting : Pressure relief valve. Pre - set 400bar

Cartridge valve M22 × 1.5


4. Air booster pump

Outlet pressure: 1500bar at 7bar air input

Max. flow at no pressure: 0.5Liter/min

Pumping speed: APPROX. 417 cycle/min. at 7bar air input

Displacement per cycle: 1.2㎤

Oil tank capacity: Approx. 6Liter


5. Electric motor : Increased Safety Exp.-proof


3.7kw 112S V1, Eg3

4Poly, 3Phase, 440V, 60Hz, Ip54. F-CLASS


6 Weight : Approx. 200kg
