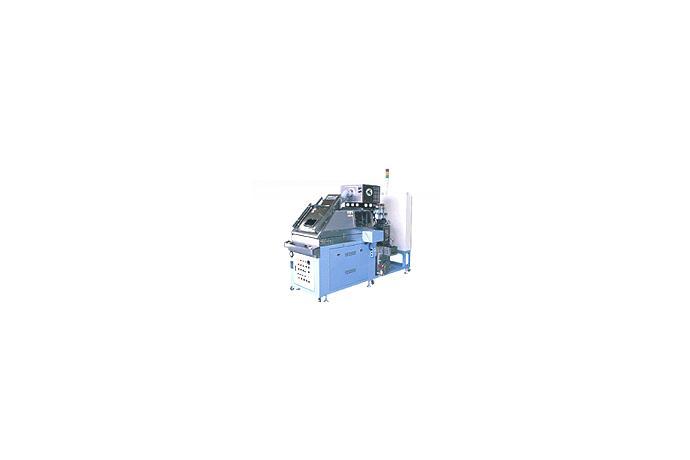

Description
The change to Widely Used Automatic Cleaning Machine from Exclusively Used One. 120% Lmprovement of Washing Capacity
> Low-Cost Standard System
> Easy to Set Up and Move
> Compact Design and Minimum Space Required to Set Up
◆ Main Specification
| WASHING TYPE | High Pressure Spray(Work Moving) |
| AIR BLOW | Fix Nozzle(Work Moving) |
| WORK FEEDING | Shuttle Tray |
| WASHING PRESSURE | MAX 0.4MPa |
| DETERGENT | Neutral, Weak Alkali |
| POWER SOURCE | AC 220V 60Hz 14.4KVA |
| LOADING HEIGHT | FL~900 |
| WORK SIZE | W400 x H150 x L200 |
| MATERIAL | W1270×H1620×L2920 |
| MACHINE SIZE | W960 x H1750 x L2400 |
◆ Main Equipment
| WASHING PUMP | Grundfos - 7.5㎾ |
| FILTER PUMP | EVARA - 1.5㎾ |
| NOZZLE | Washing 52ea, Air Blow 26ea |
| FILTER | Bag Filter - 50μ×1set |
| Suction Filter - SUS#60 | |
| Mesh Basket Filter - SUS#60 | |
| HATER | Plug Type Electric Heater - 10㎾×2ea |
| TANK TYPE | Dirty & Clean |
| TANK CAPACITY | 170ℓ & 160ℓ |
| EXHAUST UNIT | SC-200 |
| OIL SKIMMER | Stainless Belt OS-50 |
◆ Drawing
