HANA FMK
HANA FMK
Description

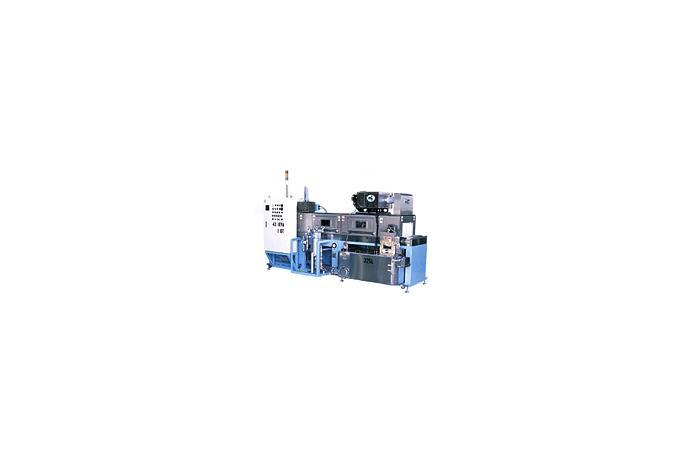

Baslc Type Washing&Drying Machine, Basic Type with Hot Air Generator
> Low-cost, Compact Design, Various Options
> Excellent Drying Acceleration Capacity
◆ Main Specification
| WASHING TYPE | Spray(Fix Nozzle) |
| AIR BLOW | Fix Nozzle |
| DRYING | Hot Air Generator 10㎾×2ea |
| WORK FEEDING | Endless Net Conveyor |
| WASHING PRESSURE | Max 0.4MPa |
| DETERGENT | Neutral, Weak Alkali |
| POWER SOURCE | AC220V 60㎐ 47.2KVA |
| LOADING HEIGHT | FL~900 |
| WORK SIZE | W400×H200×L- - |
| MATERIAL | SUS430(Room, Tank) |
| MACHINE SIZE | W1280×H1670×L3410 |
◆ Main Equipment
| WASHING PUMP | EVARA-3.7KW |
| CHAIN DRIVING MOTOR | 0.2Kw(Inverter Control) |
| CONVEYOR SPEED | 0.3~3.6M/min |
| NOZZLE | Washing 78ea, Air Blow 26ea |
| FILTER | Bag Filter - 50μ×1set |
| Suction Filter - SUS#60 | |
| Mesh Basket Filter - SUS#60 | |
| HATER | Plug Type Electric Heater - 10Kw×1 |
| TANK CAPACITY | 325ℓ |
| EXHAUST UNIT | SC-200 |
| OIL SKIMMER | Stainless Belt OS-50 |
◆ Drawing
