Application

Tranmission gear welding
General steel welding

Features

1) Automatic loading / unloding
 -Supplied spider and shell by conveyer
 -work indentifyng / error proofing
 -spider and shell temporary assmbling in the transfer-standing by position
 -Tightening in the welding jig
 -Loding / Unloading by Scara robot
2) Tightening by spider itself reilience force after inserting into shell's slit
3) Two Bead System
4) Satefy wall house

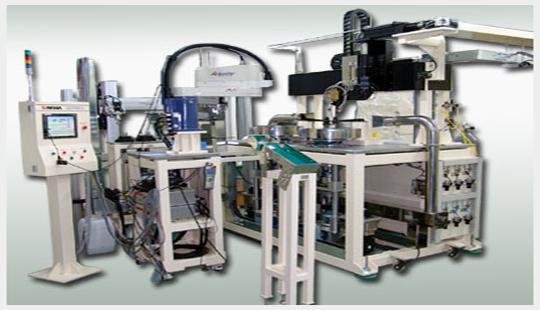

Configuration

1) High power laser
2) Beam delivery
3) Rotaition type welding bead, 2 beads
4) Gantry type of welding head transfer device
5) Work transfer by Scara robot
6} PLC control
7) Laser Chiller
8)Fume device
