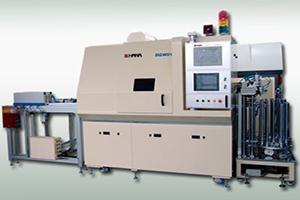

Application

Transmission gear welding

Features

1) Deformation / distortion overcome by HAZ
2) Automatic loading {different kinds of parts sorting) / transferring
3) Press fittrng before welding
4) Turn table with a bult-in fixture
5) Sealed structure for safety
6) Parts loading Error prevention

Configuration

1) High power laser
2) Beam delivery
3) Index table
4) Servo press (automatic parts arrangement function)
5J Z & R axis workstation
6} PLC control
7) Laser Chiller
8) In Stacker / Out Stacker (400 for each part)
9) Error Proofing Unit
