product Image
Semi automatic working
Model Name
-
Series
Agricultural robots
Data
-
Manufacturer information
provider logo
HADA

Manufacturer of garlic planter and onion farming machine

Problem with product info?
Update request
Manufacturer
HADA
Product Type
Machine
Brand
-
SKU
16831
Product Name
Semi automatic working
Model Name
-
Size
-
Weight
-
Product Details




Semi automatic working

Controllable spraying capacity

Customized-spray boom pipe

Low labor cost and safe from noxious environment




제품제원

    • ModelLiquid supplierHose reel stationSprayer robot + nozzle
    • L X W X H1000 X 600 X 1500mm800 X 600 X 1500mm750 X 530 X 2000mm
    • Weight80kg50kg30kg
    • Working speedManualManualMax 1.5 m/s
    • Performance5~6L / min30 m/min
    • Operating time3~4 hour
    • Communication distance150m
    • Working efficiency2,314㎡~3,305㎡ / 1 hour
    • Remarks주행 레일은 별도 구성 / 양액통은 사용자 위치 고정

    Semi automatic working

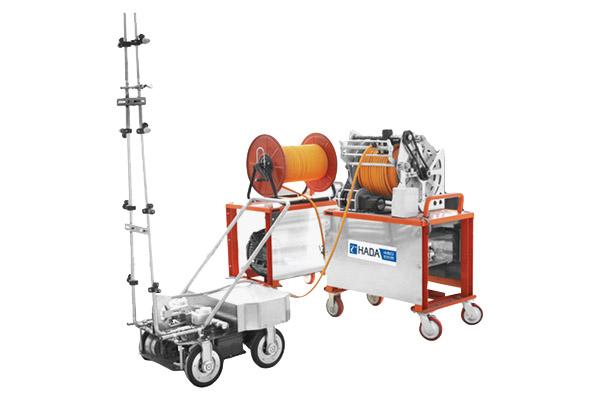

    Semi-automatic sprayer starting on the rail


    CEROS Necessity

    Precise timinqWorkforce shortage resolutionWorkforce shortage resolution




    CEROS Advantage

    Spray angle adjustableCustomizableAutomatic winding function




    Nozzle type and sprayable representative crop
    Nozzle shape can be customized according to crop



    • Max. Distance: 1.5M / Number of nozzles 10Applied crops: strawberries, flowers, etc.

    • Max. Separation distance: 3M / Number of nozzles 12 (Maximum 22)Applied crops: tomatoes, paprika, cucumber, etc.


    Distribution status



HADA
Manufacturer of garlic planter and onion farming machine
Inquiry
