product Image

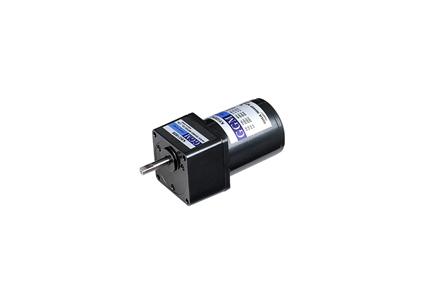

K8G+Induction(40W)
Model Name
K8I□40FC
Series
Gearhead+Motor
View All
Data
Catalog-GGM-Gearhead+Motor-K8G+Induction(40W)
Manufacturer information
provider logo
GGM

Geared motor manufacturer, Small motor, Reducer, AC motor, DC motor, BLDC and more

Problem with product info?
Update request
Manufacturer
GGM
Product Type
Machine
Brand
-
SKU
132266
Product Name
K8G+Induction(40W)
Model Name
K8I□40FC, K8I□40FH, K8I□40FM
Size
-
Weight
-
Product Details

40W continuous rating, four poles

Model Out Put (W) Voltage (V) Frequency (Hz) Current (A) Start T. (N*m/Kgf*cm) Rated T. (N*m/Kgf*cm) Speed (rpm Condenser (μF)
K8I□40FC single-phase 40 220 50 0.45 0.23 0.315 1250 2.5
2.30 3.15
60 0.43 0.23 0.255 1500
2.30 2.55
230 50 0.50 0.27 0.315 1250
2.70 3.15
60 0.45 0.24 0.255 1550
2.40 2.55
K8I□40FH three-phase 40 220 50 0.48 0.97 0.294 1300 -
9.70 2.90
60 0.35 0.71 0.245 1600
7.10 2.45
230 50 0.50 1.01 0.300 1300
10.1 3.00
60 0.37 074 0.245 1600
7.40 2.45
K8I□40FM 380 50 0.26 076 0.300 1300 -
7.60 3.00
60 0.20 0.66 0.245 1600
6.60 2.45

* □ : SHAFT SHAPE (S : STARIGHT, G : PINION)

* 3 phase motor for over 380 voltage can't be used with inverter. Motor winding insulation can be damaged.
