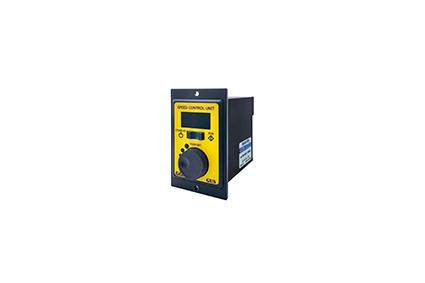

AC Motor Driver
Model Name
GUS-U-□
Series
Controller
View All
Data
Manual-GGM-Controller-AC Motor Driver-GUS
Manufacturer information
provider logo
GGM

Geared motor manufacturer, Small motor, Reducer, AC motor, DC motor, BLDC and more

Problem with product info?
Update request
Manufacturer
GGM
Product Type
Machine
Brand
-
SKU
132132
Product Name
AC Motor Driver
Model Name
GUS-U-□, GUS-C-□
Size
-
Weight
-
Product Details

Specifications

Property & Model name GUS-U-□ GUS-C-□
Rated voltage and power frequency

Single-phase AC110V 50/60Hz

Single-phase AC115V 50/60Hz

 single-phase AC 220~240V 50/60Hz
Operating Voltage range ±10% (in comparison to the rated voltage)
Applied motor output

INDUCTION : 6 ~ 180W

REVERSIBLE : 6 ~ 180W
Speed control range

60Hz : 100~1730rpm

50Hz : 100~1430rpm
Speed regulation ±5% (Standard value)
Speed setting Set according to the volume
Operating temperature range -10~40℃
Storage temperature range -20~60℃
Operating humidity range less than 85% (in an environment with no dew condensation)
