Manufacturer
GGM
Product Type
Machine
Brand
-
SKU
132120
Product Name

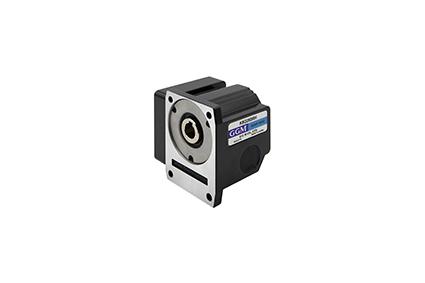

GEARHEAD Right angle shaft
Model Name
K9I□60F□(-T, -T5), K9P□BRH
Size
-
Weight
-
Product Details
● INDUCTION MOTOR / 50Hz
Unit = above : N · m / below : kgfcm
● INDUCTION MOTOR / 60Hz
Unit = above : N · m / below : kgfcm
* The code in □ of gearhead model is for gear ratio.
* Output shaft of the geared motor rotates in the opposite direction of the motor. Others indicate rotation in the opposite direction.
* RPM is based on motor's synchronous rpm (50HZ:1500rpm, 60HZ:1800rpm) and calculated by dividing gear ratio. Actual rpm is 2~20% less than indicating rpm according to load size.
* Output torgue become smaller during starting than rated because of low transfering efficiency.
