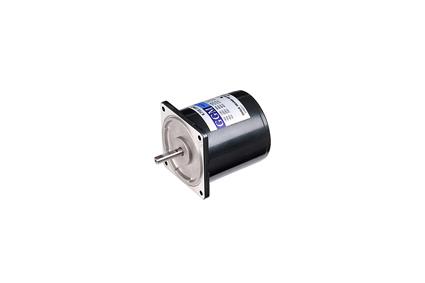

product Image
Induction Motor (40W (□90mm))
Model Name
K9I□40NJ(-T
Series
AC Motor
View All
Data
Manual-GGM-AC Motor-Induction Motor
Manufacturer information
provider logo
GGM

Geared motor manufacturer, Small motor, Reducer, AC motor, DC motor, BLDC and more

Problem with product info?
Update request
Manufacturer
GGM
Product Type
Machine
Brand
-
SKU
131811
Product Name
Induction Motor (40W (□90mm))
Model Name
K9I□40NJ(-T, -T5), K9I□40NU(-T, -T5), K9I□40NL(-T, -T5), K9I□40NC(-T, -T5), K9I□40ND(-T, -T5), K9I□40NT(-T, -T5), K9I□40NH(-T, -T5), K9I□40NM(-T, -T5), K9I□40NV(-T, -T5), K9I□40NQ(-T, -T5), K9I□40NZ(-T, -T5)
Size
-
Weight
-
Product Details

40W continuous rating, four poles

Model Voltage (V) Frequency (Hz) Current (A) Start T. (N*m/Kgf*cm) Rated T. (N*m/Kgf*cm) Speed (rpm Condenser (μF)
K9I□40NJ(-T, -T5) single-phase 100 50 0.86 0.21/2.1 0.315/3.15 1250 2
60 0.84 0.22/2.2 0.255/2.55 1550
K9I□40NU(-T, -T5) 110 60 0.65 0.19/1.9 0.255/2.55 1550 8
115 0.68 0.2/2
K9I□40NL(-T, -T5) 200 50 0.4 0.22/2.2 0.315/3.15 1250 3
60 0.41 0.255/2.55 1550
K9I□40NC(-T, -T5) 220 50 0.38 0.24/2.4 0.315/3.15 1250 2.5
60 0.37 0.255/2.55 1550
230 50 0.4 0.26/2.6 0.315/3.15 1250
60 0.38 0.255/3.55 1550
K9I□40ND(-T, -T5) 240 50 0.39 0.2/2 0.3/3 1300 2
K9I□40NT(-T, -T5) three-phase 200 50 0.39 1/10 0.3/3 1300 -
60 0.32 0.78/7.8 0.245/2.45 1600
K9I□40NH(-T, -T5) 220 50 0.33 0.95/9.5 0.29/2.9 1350 -
60 0.31 0.78/7.8 0.245/2.45 1600
230 50 0.41 1/10 0.29/2.9 1350
60 0.32 0.83/8.3 0.245/2.45 1600
K9I□40NM(-T, -T5) 380 50 0.18 1/10 0.29/2.9 1350 -
60 0.78/7.8 0.245/2.45 1600
K9I□40NV(-T, -T5) 400 50 0.18 1.15/11.5 0.29/2.9 1350 -
60 0.19 0.88/8.8 0.245/2.45 1600
K9I□40NQ(-T, -T5) 415 50 0.16 0.95/9.5 0.29/2.9 1350 -
60 0.14 0.72/7.2 0.245/2.45 1600
K9I□40NZ(-T, -T5) 440 50 0.19 1/10 0.29/2.9 1350 -
60 0.16 0.79/7.9 0.245/2.45 1600

* □ : SHAFT SHAPE (S : STARIGHT, G : PINION)

* 3 phase motor for over 380 voltage can't be used with inverter. Motor winding insulation can be damaged.
