DTS10 Metal-Polymer Hydrodynamic Composite Bearings
Model Name
DTS10
Series
Metal-Polymer bearings
Data
Catalog-GGB-DTS10 Metal-Polymer Hydrodynamic Composite Bearings
Manufacturer information
provider logo
GGB KOREA
Plain Bearings, Self-lubricating Bushings Manufacturer, Polymer Coatings, Metal-Polymer Bearings and more
Problem with product info?
Update request
Manufacturer
GGB KOREA
Brand
-
SKU
138547
Product Name
DTS10 Metal-Polymer Hydrodynamic Composite Bearings
Model Name
DTS10
Size
-
Weight
-
Product Details





  • The first polymer-lined precision bearing for lubricated conditions offering low friction and high wear resistance that is designed to be machined on-site for tight tolerances
  • Excellent wear resistance and low friction in lubricated hydraulic applications
  • Excellent chemical resistance, fatigue strength, cavitation and flow erosion resistance, and good behavior in dry start-up conditions
  • A minimum overlay thickness of 0.1 mm permits, under carefully controlled conditions, machining of the assembled bore for improved dimensional tolerance and reduced geometric defects, while retaining a thin layer of PTFE sliding surface
  • Compatible with most standard machining processes including turning, broaching, reaming, and milling

AVAILABILITY

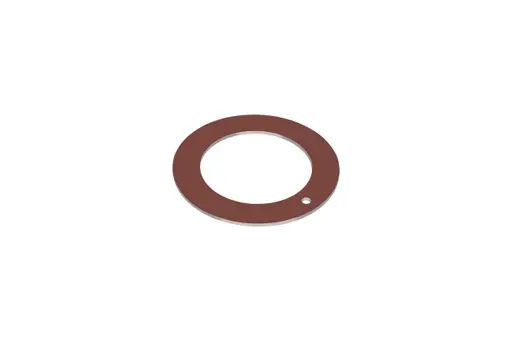

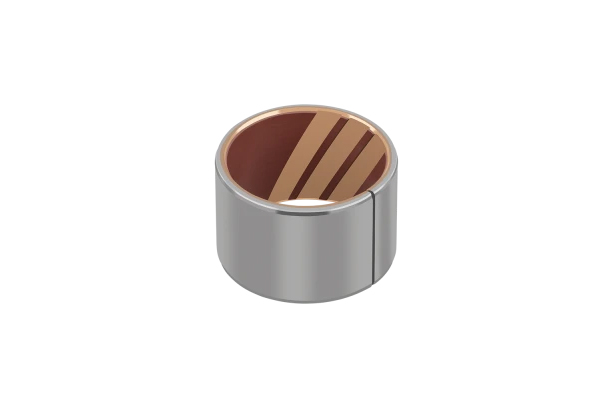

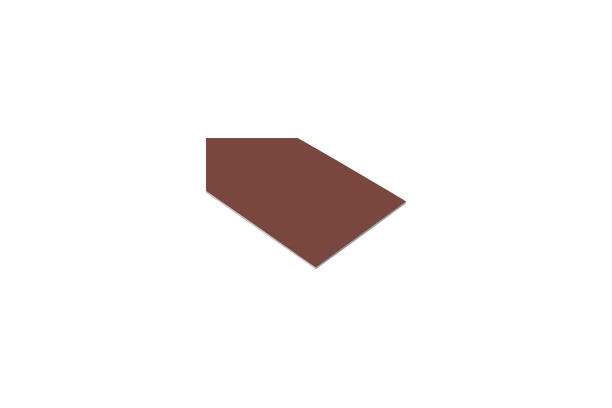

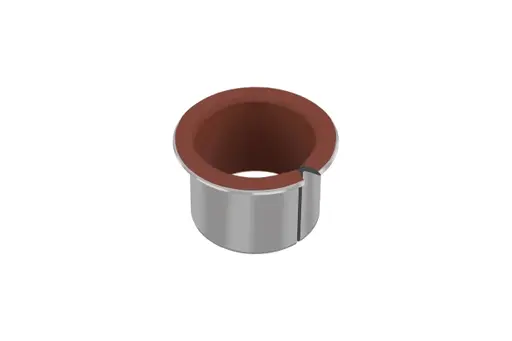

Bearing forms made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs



  DTS10
Dry Operation Fair
Lubricated Operation ★ Very Good
Greased Operation Fair
Machinable Applicable
RoHS Compliant Compliant
Standard Sizes Not Available
Application Excellence
