Features

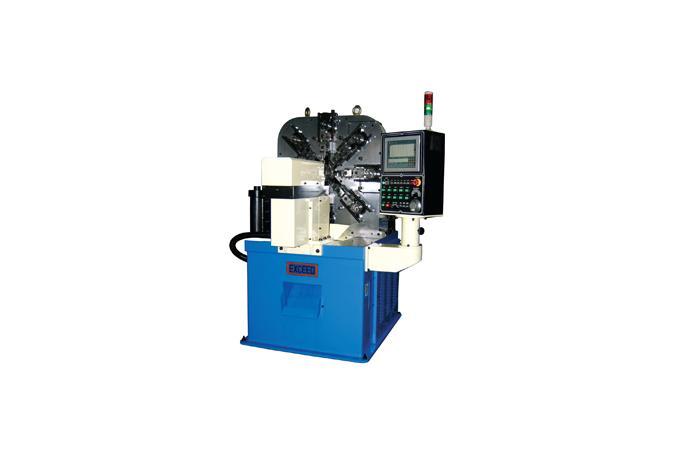

- As the MTSF series Spring machine is linked with the CNC Central Process System and the axes of Servo motor X, Z, R, B 4 together with the axes of Servo motor X, Z, Y, R, B 5 the products maintain a high degree of preciseness and also the user can form programs easily.

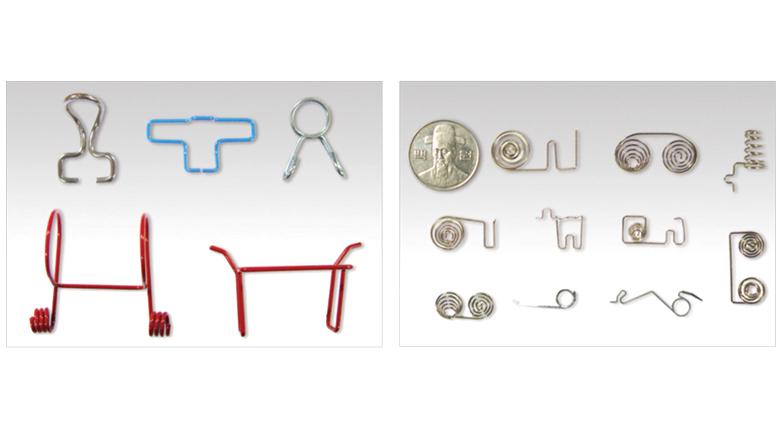

- As the axis of Universal R of this machine goes around 360,it is possible to control the movement of this machine from any angle. Also, axis B as the Universal bending axis, it is possible to produce various shapes of products by using the program without reforming each slide and the tools, if the steel wire is identical. Therefore, if the form of body tool and the cutting tool is at the axis of X(cam), it is possible to do the bending, R, and coiling with Universal.

- As the axis of Y(Quill) rotates, it is possible to use it as a pitch stand for the Quill damage protective forming process. Also, when producing something that has the same shape of torsion spring, it is easy to form the Quill without processing.
