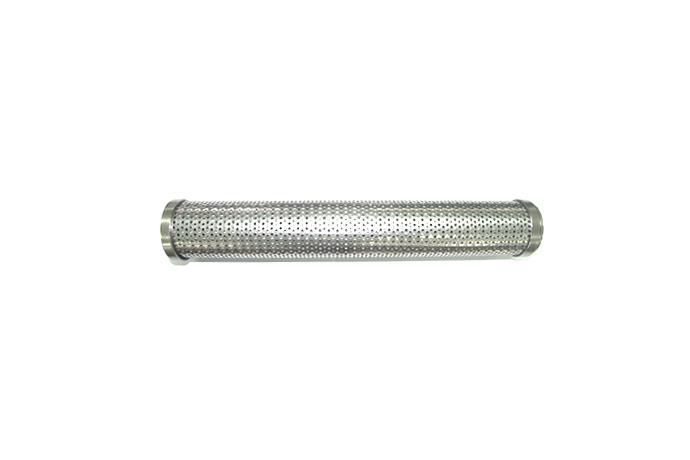

Product Name Air Filter
Model Q.P.H Series
Series Products
Catalog
Product Description

ㆍFeatures
In order to run the equipment at high quality under optimum conditions, the compressed air shall be free from any foreign materials .It removes solid particles, dust and water to supply clean air.

ㆍQ Series
Specifications:
Highest working pressure (standard): 10 ㎏/㎠
Highest working temperature: 60 ℃
Material: MEDIA — GLASS FIBER + PAPER
 CORE - STS304
 CAP — SCS13
Filtering density: 3 µm
Life: PRE — 1-year, AFTER — 2-year

ㆍP Series
Specifications:
Highest working pressure (standard): 10 ㎏/㎠
Highest working temperature: 60 ℃
Material: MEDIA — GLASS FIBER + PAPER
 CORE - STS304
 CAP — SCS13
Filtering density: 1 µm
Life: PRE — 1-year, AFTER — 2-year

ㆍH Series
Specifications:
Highest working pressure (standard): 10 ㎏/㎠
Highest working temperature: 60 ℃
Material: MEDIA — HEPA FIBER + FM MAT
 CORE - STS304
 CAP — SCS13
Filtering density: 0.1 µm
Life: PRE — 1-year, AFTER — 2-year

ㆍAdvantage and disadvantage
Advantage: Good mechanical durability
Disadvantage: Makes use of air filter before and after using the air dryer only.
