LOW PRESSURE VACUUM CARBURIZING FURNACE

ICBP® JUMBO completes the low pressure / vacuum carburizing range of solutions which ECM Technologies proposes, enabling to process large loads at high frequency while offering an optimized access to all the components of the system.

The ICBP® Jumbo keeps all of the compact and modular qualities of the ICBP® Flex, but goes further in terms of volume and number of parts treated in a low pressure carburizing installation.

Furthermore, the ICBP Jumbo system shows a high level of integration and automation. With, ECM Robotics, ECM Technologies manages and integrates robots to optimize cycles before and after heat treatment operations.

PLUS AND BENEFITS

The key points of the ICBP® Jumbo:

Fully compatible with all versions of AMS2750 aeronautic specification.

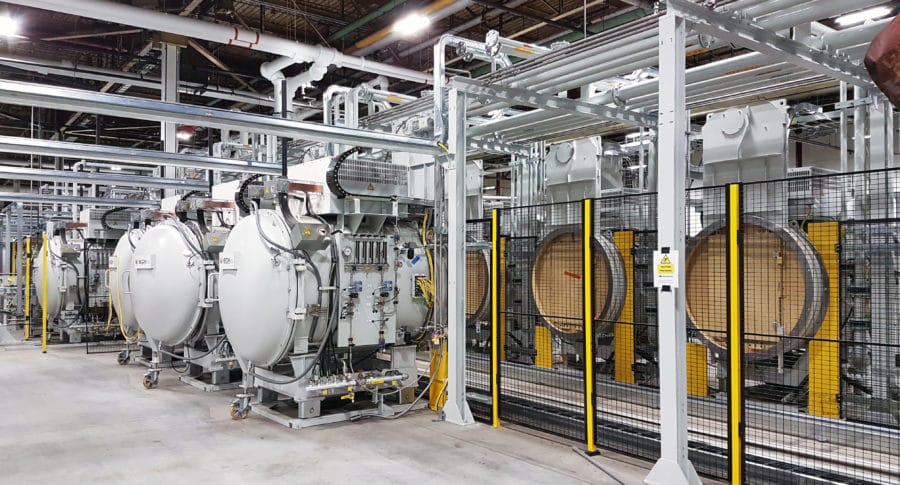

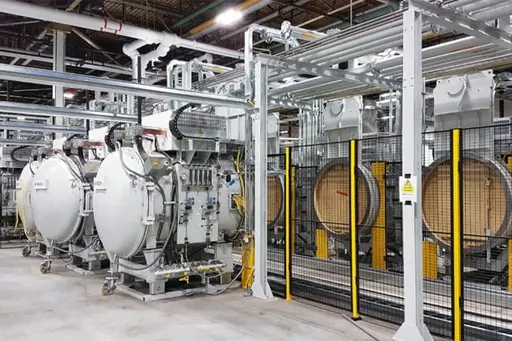

Compact system with the cells facing one another and the possibility to have gas and oil quenching on the same installation

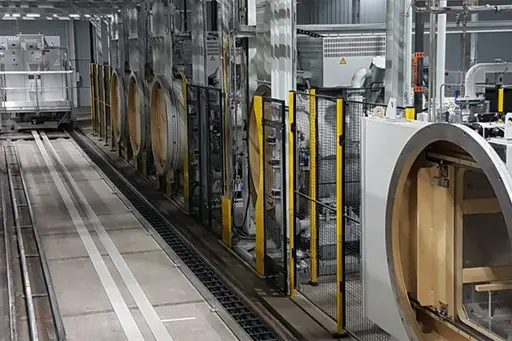

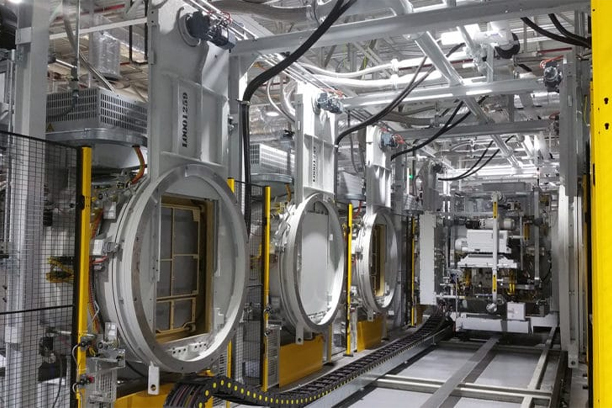

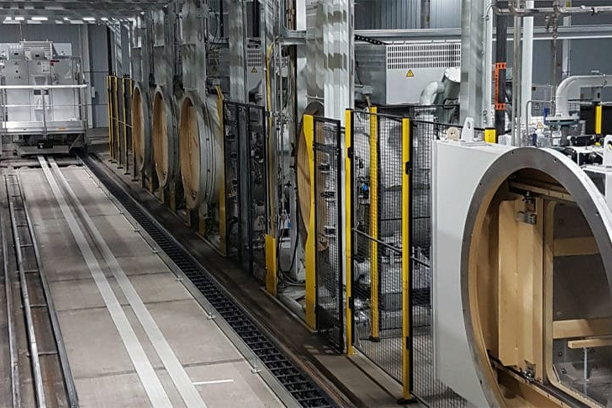

Possibility to perform maintenance from the back AND the front of the cell DURING production thanks rails on which the cells are mounted, which make the maintenance position possible.

No Civil Engineering additional cost required.

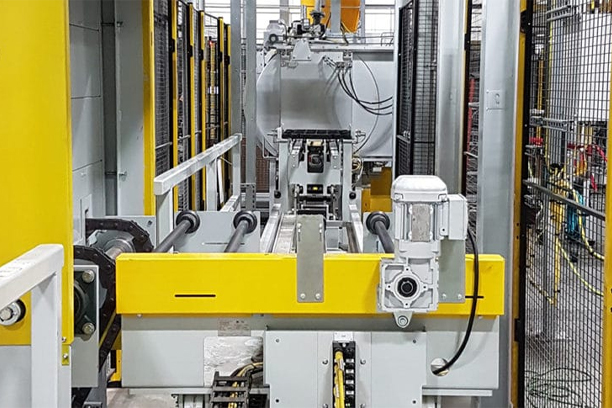

The transfer module is insulated and heated to guarantee quenching uniformity from one load to the next.

This modularity guarantees the possibility to mix any type of recipe processes with a continuous workflow.

POSSIBLE APPLICATIONS

• Low pressure / vacuum carburizing
• Case hardening
• Vacuum carbonitriding
• Quenching
• High temperature tempering
• Vacuum annealing
• Brazing
• Sintering

EFFECTIVE DIMENSIONS

ICBP JUMBO

Heating up to 1050°C standard, high temperature available

MORE SIZES AVAILABLE : CONTACT US

OPTIONS

• Compatible with
  • AMS2750
  • CQI9
• Neutral atmosphere convection heating
• Hot oil quenching
• Water loop for cooling
• Quenching gas recovery system (for helium)
• Possibility to integrate the furnace and all peripherals within a heat treating line, made of: washing machine, pre heating furnace, tempering, storage, transfer system, unloading…
  Heating cell for deoiling and dewaxing, high temperature tempering
