EATON
Souriau UTL Series TRIM TRIO™ Push-Pull Connectors
Model
Series
Souriau Harsh Environment Connectors
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
UL/IEC POWER + CONTROL SUPPLY CONNECTORS

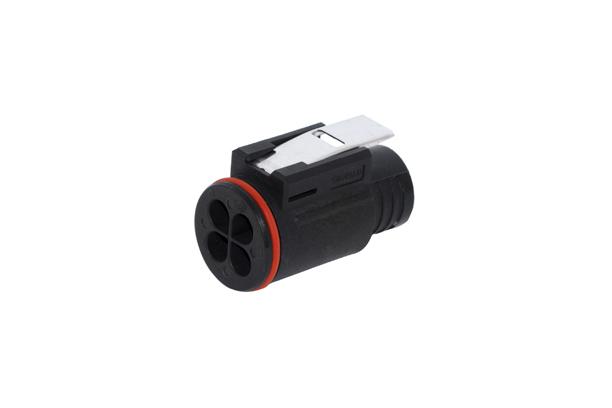

The Souriau UTL TRIM TRIO® Series had been developed according to industrial equipment standards to take into account requests like impact resistance, finger probe, and current breaking capacity. The plastic-shell UTL offers four layouts (4, 5, 6, 8-pos), each with its own capabilities: 4 position allows 3 power plus a dedicated ground, 5 position allows field installation and screw terminal contacts (optional) with snap-in backshell, and 6 and 8 position offer power (up to 16A 277V) and signal (DMX, ROM, DAU) transmission in a single connector.
The 6 and 8 combinations both reduce the complexity of your system and can reduce installation costs. The Souriau UTL series of push-pull connectors are UL/IEC qualified and are also compliant with DMX single and duplex protocol. These connectors are ideal for lighting, power, automation, telecommunication, medical, and instrumentation applications
SOURIAU UTL Series Features and Benefits:
