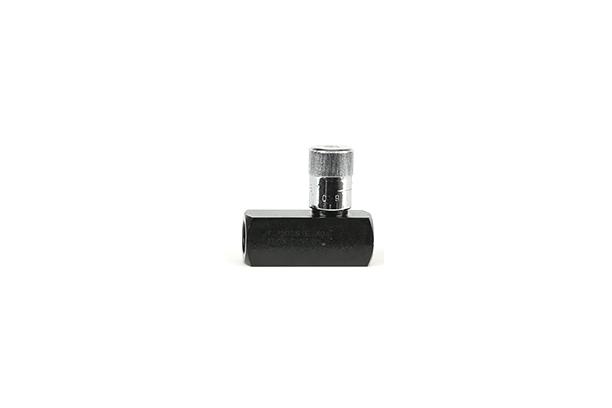

product Image
FLOW CONTROL VALVE
Model Name
FC-400S
Series
FLOW CONTROL VALVE (VALVES)
View All
Data
-
Manufacturer information
provider logo
DUKIN INDUSTRIES

Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder

Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Product Type
Machine
Brand
-
SKU
125654
Product Name
FLOW CONTROL VALVE
Model Name
FC-400S, FC-600S, FC-800S, FC-1200S, FC-1600S, FC-2000S
Size
-
Weight
-
Product Details

제품특징

이 밸브는 유량 제어 밸브와 방향 제어 밸브를 조합한 나사 체결용 밸브로 한쪽 방향의 유량을 Handle을 이용 제어하고, 반대방향은 유체를 체크밸브를 통하여 자유롭게 흘릴 수 있는 밸브입니다.



유압 회로도


압력 강하 특성





형식 기호




사양

형식기호호칭경최고사용압력
(kgf/㎠)		최대유량
(ℓ/min)		CRACKING 압력
(kgf/㎠)
FC-400SPT 1/4350190.5
FC-600SPT 3/830
FC-800SPT 1/250
FC-1200SPT 3/421095
FC-1600SPT 1150
FC-2000SPT 1-1/4250



외형 치수도




단면 구조도
