Description

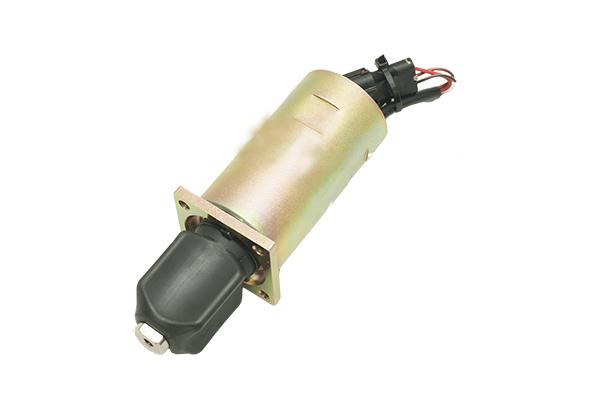

| Model | Engine Stop Solenoid |
| Applicable vehicle | Diesel engines for commercial vehicle and heavy truck |
Product brief description
This is designed to meet continuous duty operation in the most several engine environments. This is available in 24V and mounts directly to the engine without extra bracket.
Product Details
• Continuous duty operation under various temperature and vibration
• Simple installation
• Durable design for long life and safe
• Rated voltage : DC24V
• Operating temperature : -20℃~ +80℃
• Storage temperature : -40℃~ +80℃
• Pulling/Holding forces : 4/10kgf, 8/12kgf(at 25℃)
• Pull current : 22A max.(at 24Vdc)
• Hold current : 1.2A max(at 24Vdc)
• Stroke : 30mm
