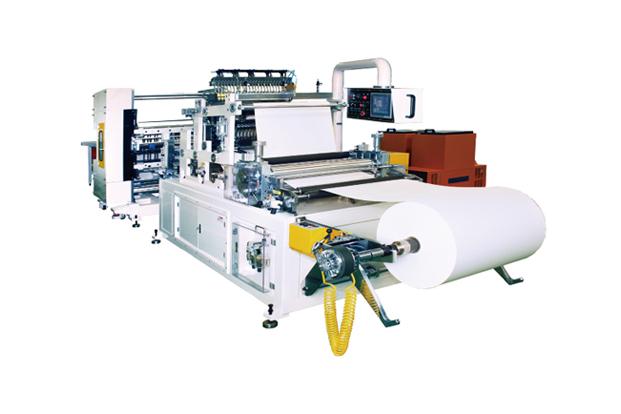

Product Name CORRUGATE MACHINE
Model DBWC-W300
Series CORRUGATE MACHINE
Catalog catalog-doublewin-CORRUGATE MACHINE.pdf
Product Description

This is designed to produce aluminum or paper separators by continuously foaming pleats on them.


SPEC.DBWC-W300
MAX. PRODUCTION CAPACITY30M/MIN.
MAX. WIDTH OF MEDIA300MM
WORKING PLEAT HEIGHT3MM [ULPA]/ RANGE: 2.5 ~ 3.5MMRoller Change for Different Height
5MM [HEPA]/ RANGE: 4.5 ~ 5.5MM
8MM [MEDIUM]/ RANGE: 7.5 ~ 8.5MM
WORKING MEDIAALUMINUM, PAPER
MAIN DRIVE MOTOR0.75KW(1HP)*3P
ELETRICITY220V*60(50)HZ*3P(4P)
FEATURES
  • Unwinder controlled by Fiber Sensor
  • Media Tension Control by Powder Brake System
  • Production Speed Control by Inverter Control System
  • Load Cell is equipped
  • Automatic Pushing (by Pusher)
  • Forming roller on each both ends of media
  • Teflon(or Chrome)-coated Star Type Roller to minimize tearing or damage on media
  • Automatic Cutting System
