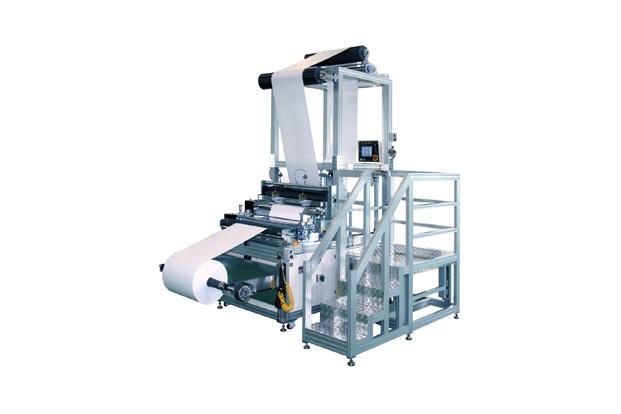

Product Name CELL PLEATING MACHINE (STANDARD TYPE)
Model DWCF-W1000S
Series CELL PLEATING MACHINE
Catalog Catalog-Doublewin-CELL PLEATING MACHINE(STANDARD TYPE).pdf
Product Description
  • This is designed to produce filters that requires large filtration area and flow rate.
  • Instead of dispensing adhesive, aluminum separators are inserted between pleats.

SPEC.DWCF-W1000S
ELECTRICITY220V*60(50)HZ*3P(4P)
INPUT POWERSERVO MOTOR: 1.2KWAPPROX 1.8KW
FEEDING MOTOR: 0.4KW
UP&DOWN MOTOR: 0.2KW
MAX. PRODUCTION CAPACITY20M/MIN
MAX.WIDTH OF MEDIA950MM
WORKING PLEAT HEIGHT80~300MM
MAIN MOTOR CAPACITY1.2KW*3P*SERVO MOTOR
0.4KW*3P*2:1*FEEDING MOTOR(GEARED MOTOR)
AIR PRESSURE6KGF/㎠ (85PSI)
SLIT CUTTER2SETS

FEATURES

  • Automatic Height Adjustment by Servo Roller System → No needs to change roller
  • 3 inch Air Shaft
  • Manual Insertion of Aluminum foil
  • Pitch adjustment: Gasket-changing system → Convenient Changing, no needs of delicate adjustment
  • Media Tension Controlled by Powder Brake System
  • Working Media: Glass Fiber (HEPA & Medium)
  • Only one operator required
  • Safety Guard System on doors
