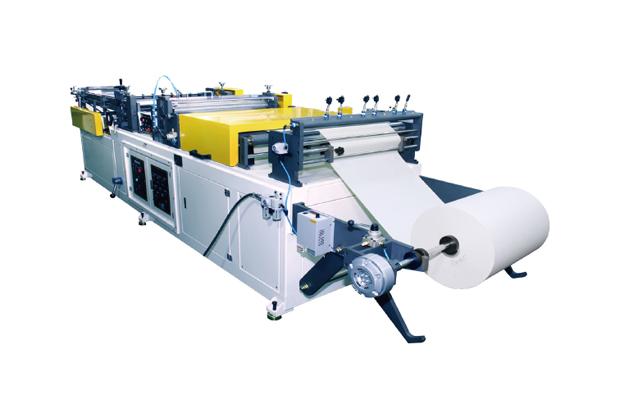

Product Name RECIPROCATE PLEATING MACHINE (STANDARD TYPE)
Model DBWK-W700TS, DBWK-W800TS, DBWK-W1000TS, DBWK-W1300TS, DBWK-W1600TS
Series RECIPROCATE PLEATING MACHINE
Catalog Catalog-Doublewin-RECIPROCATE PLEATING MACHINE (STANDARD TYPE).pdf
Product Description

This is designed to pleat Non woven, Synthetic, PTFE, PP, PET, Paper, Mesh  and other various media. Also, multi-layer pleating is possible through the reciprocate pleating machine


SPEC.DBWK-W700TSDBWK-W800TSDBWK-W1000TSDBWK-W1300TSDBWK-W1600TS
MAX. PRODUCTION CAPACITYA TYPE: 100PLEATS/MIN
B TYPE: 120PLEATS/MIN

A TYPE: 100PLEATS/MIN
B TYPE: 120PLEATS/MIN

A TYPE: 100PLEATS/MIN
B TYPE: 120PLEATS/MIN
A TYPE:100PLEATS/MIN
B TYPE: 120PLEATS/MIN
80PLEATS/MIN
MAX. WIDTH OF MEDIA650MM750MM950MM1,250MM1,550MM
WORKING PLEAT HEIGHTA TYPE: 7MM~100MM
B TYPE: 7MM~60MM
A TYPE: 7MM~100MM
B TYPE: 7MM~60MM
A TYPE: 7MM~100MM
B TYPE: 7MM~60MM
A TYPE: 7MM~100MM
B TYPE: 7MM~60MM
10~80MM
MAIN DRIVE MOTOR3.75KW*3P3.75KW*3P
3.75KW*3P
3.75KW*3P
3.75KW*3P
ELECTRICITY380/220V*60(50)Hz*3P380/220V*60(50)Hz*3P
380/220V*60(50)Hz*3P
380/220V*60(50)Hz*3P
380/220V*60(50)Hz*3P
FEATURES

RECIPROCATE PLEATING MACHINE

  • Minimize the friction with Teflon Coating on Pleating : Blade and Heating Plate (upper & lower)
  • Heating by Pre & Post Heaters (Temp. Range 180˚C) to keep consistent Shape
  • Driven by Cam System
  • Pen Marking function, W/M Type & Sink Type Pleating to count pleats
  • ION BLOWER (To minimize static between pleating machine and media)
  • Automatic Stop of pleating blades when the lower one reaches the highest limit

UNWINDER & SLITTER

  • Lift System for Media Changing
  • Media holding by 3 inch air shaft
  • Media Tension Control by Powder Brake System
  • Media Feeding Speed Controlled by Inverter
  • Fiber Sensor
  • Rubber-coated upper feeding roller
  • Cutter: 4 sets
  • Air Cylinder Type Slit Cutter
  • Electricity: 380V/220V*60Hz*3P
  • Capacity of Motor Drive: 0.40KW
  • Working Media spec
    Width: 650, 950, 1250, 1550mm
    (Depending on the machine width)
    External Diameter: Max. 1000mm
    Weight: Max. 50kg
