Doowoong
Doowoong
Description

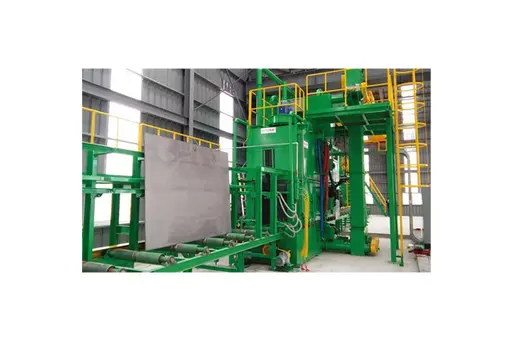

- Type Roller conveyor / Impeller blasting type
- Features Compactness and automatic type
- Use H-beam & Steel plate auto blasting equipment
| MODEL | HB-0512 | HB-0820 |
|---|---|---|
| WORK | H-BEAN & STEEL PLATE | H-BEAN & STEEL PLATE |
| CAPACITY | W500W x H1,200mm | W800W x H2,000mm |
| IMPELLER UNIT | ø280 x 10HP 6 SET | ø280 x 10HP 8 SET |
| SCREW CONVEYOR | CAPACITY : 50 TON/HR | CAPACITY : 70 TON/HR |
| BUCKET ELEVATOR | CAPACITY : 50 TON/HR | CAPACITY : 70 TON/HR |
| TYPE : BELT DRIVE | TYPE : BELT DRIVE | |
| ROTARY SEPARATOR | CAPACITY : 50 TON/HR | CAPACITY : 70 TON/HR |
| TYPE : DRUM SCREW | TYPE : DRUM SCREW | |
| STORAGE HOPPER | CAPACITY : 3.5 TON | CAPACITY : 5 TON |
| SHOT GATE : 150kg/Min | SHOT GATE : 150kg/Min | |
| BLOW - OFF SYSTEM | 45M³/Min x 500mmAq | 80M³/Min x 500mmAq |
| TYPE : AIR BLOWING | TYPE : AIR BLOWING | |
| ROLLER CONVEYOR | CAPACITY : 0.5-3.0M/Min | CAPACITY : 0.5-4.0M/Min |
| TYPE : INVERTER DRIVE | TYPE : INVERTER DRIVE | |
| DUST COLLECTOR | CAPACITY : 110M³/Min | CAPACITY : 150M³/Min |
| TYPE : AIR PULSE JET | TYPE : AIR PULSE JET | |
| CONTROL PANEL | AUTO & MANUAL | AUTO & MANUAL |
