product Image

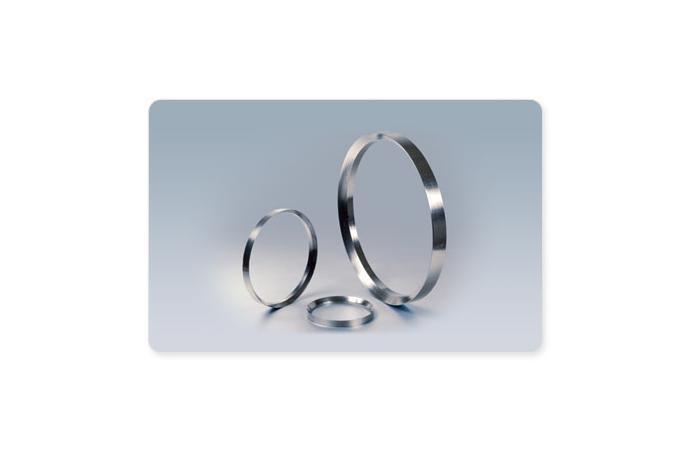

Die-Formed Bonnet Gasket
Model Name
ALS 359
Series
Die-Formed Packing & Gasket
View All
Data
-
Manufacturer information
provider logo
DONGSUH

Power Generation Plant Parts Manufacturer, Mechanical Seal, Mechanical Packing, Seal, Gasket and more

Problem with product info?
Update request
Manufacturer
DONGSUH
Product Type
Machine
Brand
-
SKU
76601
Product Name
Die-Formed Bonnet Gasket
Model Name
ALS 359
Size
-
Weight
-
Product Details

Description

This is the bonnet exclusive packing compressed and molded by winding the graphite tape for over 99.8% high purity with the mold designed according to the bonnet angle.

Service : For use in high pressure, high temperature steam valve bonnet



Technical Data

Pressure 4200psi (290bar)
Chemical Resistance pH 0 -14
Temperature From -400℉(-240℃) to 800℉(430℃) in air
From -400℉(-240℃) to 5400℉(3000℃) in non oxidizing
From -400℉(-240℃) to 800℉(650℃) in steam
