Manufacturer
DongHwa Industry
Product Type
Machine
Brand
-
SKU
52093
Product Name

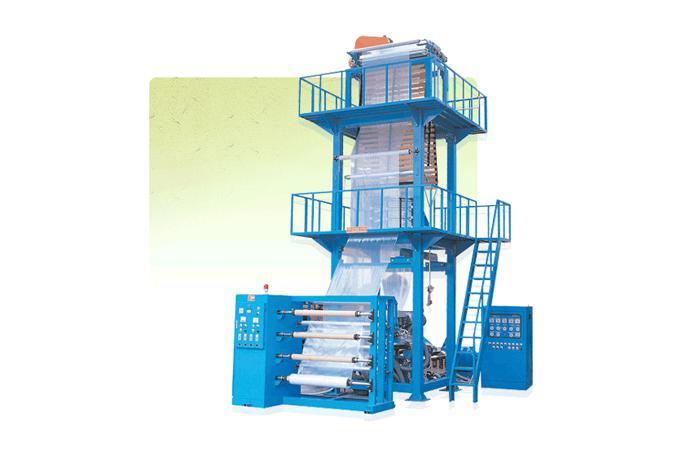

General Film Extruder
Model Name
DHS-70, 90
Size
-
Weight
-
Product Details
|
ITEM |
UNIT |
DHS-70 |
DHS-90 |
|
|
FEATURE |
MAX.EXTRUSION OUTPUT (LD/HD) |
kg/hr |
150 ~ 180 |
180 ~ 250 |
|
WIDTH OF THE FILM |
m/m |
100 ~ 1500 |
1200 ~ 2200 |
|
|
EXTRUDER |
SCREW DIAMETER |
m/m |
Ø70 |
Ø90 |
|
LENGTH/DIAMETER RATIO OF SCREW(L/D) |
. |
28:1 |
28:1 |
|
|
MAIN MOTOR |
Hp |
V.S 50 |
V.S 100 |
|
|
HEATER CAPACITY |
kw |
25 |
38 |
|
|
TAKE-UP |
PINCH R/L |
m/m |
1600 |
2400 |
|
TAKE UP MOTOR |
Hp |
V.S 2 |
V.S 3 |
|
|
TAKE UP SPEED |
m/min |
10~40 |
10~40 |
|
|
TAKE OFF SIZE(WxLxH) |
m/m |
3,000x3,500x6,500 |
3,800x4,000x9,500 |
|
|
WINDER |
TYPE |
. |
4 SHAFT/SEMI-AUTO TYPE |
|
|
WINDING DIAMETER |
m/m |
Ø500 |
Ø600 |
|
|
WINDING MOTOR |
kg/㎠ |
V.S /HP |
V.S/5HP |
|
|
WINDING SIZE |
kg |
. |
. |
|
|
OPTION DEVICE |
Hopper Loader /Embossing Roller / Surface Treater |
|||
