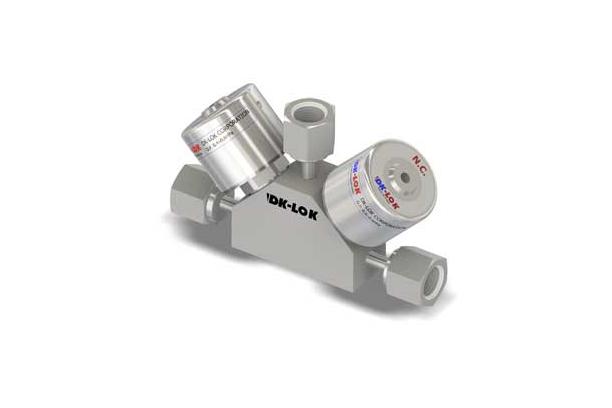

Low Pressure Pneumatic Block Diaphragm Valve
Working Pressure 145psig(10bar)
Working Temperature: -10~80°C (-23~176°F)
Material: SS316L, SS316L VAR
DCR 1/4″ Size
Minimal Particle Generation
Actuator Pressure Rating : 4 ~ 7bar (58~101psig)z
Maximum flow & Compact designed inner capacity.
Minimal contributions of moisture, Oxygen and Hydrocarbon, Minimal particle generation.
DK-Lok’s own electropolished.
D.I water cleaned, assembled, tested & packaged in a certified clean room.
Elgiloy diaphragm material with strong durability as well as corrosion resistance for long cycle life.
PCTFE seat material with remarkable chemical & thermal resistance.
