Product Name Electric Swaging Unit DES
Model
Series Tools
Catalog catalog-dk-lok-Electric Swaging Unit DES.pdf
Product Description

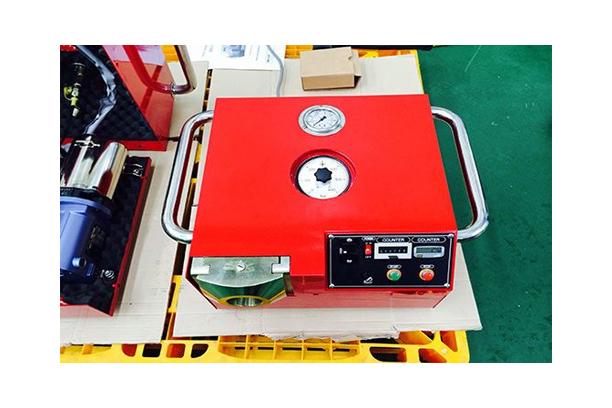

Electric Swaging Unit DES
Hydraulic Swaging Unit

Spec.
Hydraulic Pump : 0.35~2.01 kW/min
Operation pressure : 0~600 bar
Connection : 220V / 110V / 1 phase 50~60Hz / 2.5A
Dimension : 400 x 400 x 230 mm
Weight : 48kg

Brief Description
Re-swage Dk-Lok ferrules onto tubing
Fractional: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
Metric: 12 mm, 20 mm, 28 mm, 32 mm, 38 mm
Standard 220V & Optional 110V
Assure consistent makeup free from the manual pull-up torque
Reduce installation time
Easy to use by one operation
Different size can be pre-swaged just by replacing Die and Jig
Portable in sturdy plastic case
