Product Name V73
Model
Series Filters (Valves)
Catalog Catalog-dk-lok-V73.pdf
Product Description

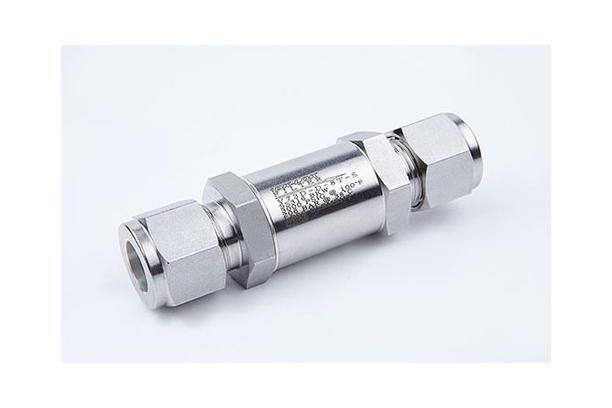

V73

Spec.
Working Pressure
– 3,000 psig for V73 Series
Stainless Steel and Brass
DK-Lok 1/8 to 1/2 in. OD
Pipe thread 1/8 to 1/2 in.

Brief Description
Traps fine contamination to maintain system purity
Gas and liquid filtration
Standard micron filtering ranges
Sintered Elements : 0.5, 2, 7, 15, 60 and 90 micron
Strainer Elements : 40, 140, 230 and 440 micron
Replaceable SS316 sintered and starainer elements
SS316 and Brass body construction
Choice of reliable DK-Lok, NPT & ISO pipe end connections
Heat Code Traceability
