Product Name VD3
Model
Series Diaphragm & Gauge Valves / Manifolds
Catalog Catalog-dk-lok-VD3.pdf

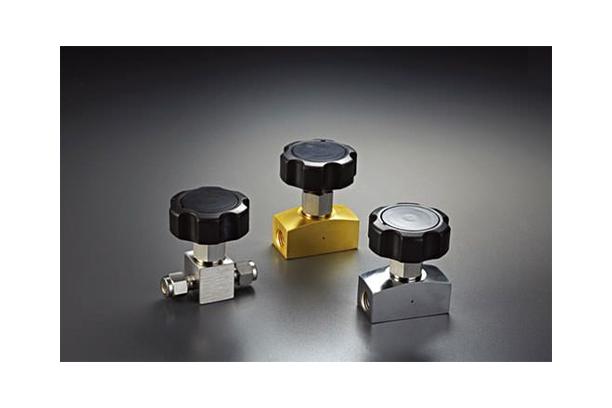

Product Description VD3
VD3 Series Pressure Rating up to 241bar (3,500 psig)

Spec.
Working Pressure : 3,500 psig
Instant open and close the valve with no o-ring no packing or no bellows in
the flow stream
Stainless Steel and Brass
DK-Lok 1/4 in. and 6mm OD
Female Pipe thread 1/4 in.

Brief Description
It is featured that the diaphragm valve serves economical, high performance and high cycle life time.
The diaphragm valve is used for shut-off, isolation in gas control systems, and analyzer sampling systems.
The valve ensures positive and consistent shut-off with manual and offers a metal to metal seal to atmosphere for leak integrity with thin plate diaphragm.
