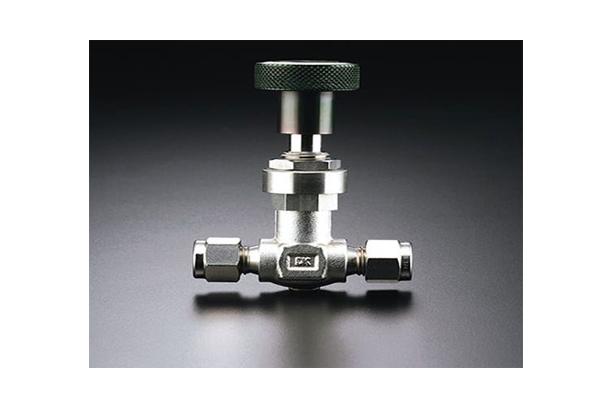

|Model||VM 1D, 3D, 6D and VMH SeriesVM 1D, 3D, and 6D Series|
|Series||Metering & Bellow Valves|
Working Pressure : 2,000 psig for VM1D Series
1,000 psig for VM3D / VM6D Series
Stainless Steel and Brass
DK-Lok 1/16 to 3/8 in. OD
Pipe thread 1/8 to 1/4 in.
Panel mount with no handle remova
Slotted handle : allows flow setting adjustment with a screwdriver.
Lock screw : locks out flow setting.
Handle stop : mechanically helps prevent damage to stem and orifice.
Stem O-ring : seals system fluids
Tapered stem tip : controls gas or liquid flow rates accurately.
