Product Name K Series JIC Tube Fittings
Model
Series Fittings
Catalog Catalog-dk-lok-K Series JIC Tube Fittings.pdf
Product Description

K Series JIC Tube Fittings

Spec.
Size : 1/8″ to 2″ (Tube O.D Inch) 4mm to 50mm (Tube O.D Metric)
Stainless Steel, Carbon Steel and Brass
Universal Fittings for Inch and Metric tube
Fittings without sleeve and nut for connection to a female swivel on a hose assembly.

Brief Description

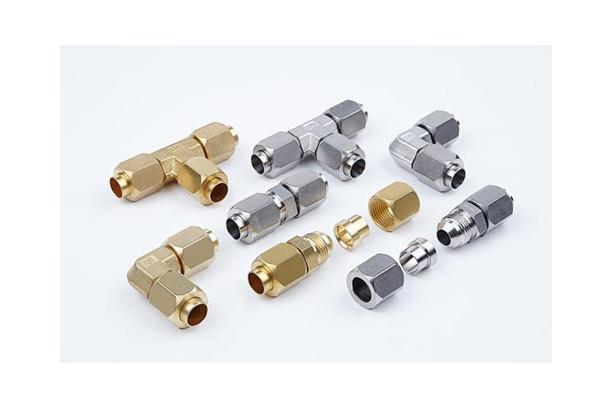

DK-Lok K series JIC Tube Fitting consist of body, sleeve and nut and meets the requirements of SAE J514 and ISO 8434-3 standards.
DK-Lok K series JIC Tube Fittings are capable of connecting to inch and metric tube with no changing the Sleeve and Nut.
The fitting body without sleeve and nut is widely used as a hose adpater for connection to a female swivel on a hose assembly.
