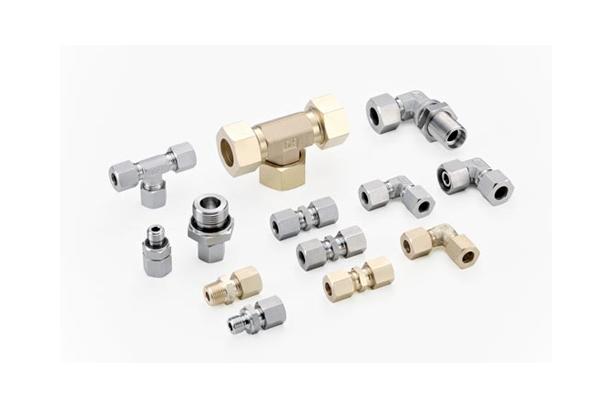

Bite type Fittings - DIN
DK-LOK Hydraulic Pipe Fittings are designed and manufactured to the following standards.
Stainless Steel, Carbon Steel and Brass
Nominal Pressure : PN (DIN 2401, part 1, draft)
Working Pressure : PB (DIN 2401, part 1, draft)
The DK DIN bite type tube fitting is a flareless metric fitting that consists of a body, a progressive ring (sleeve) and a nut. On assembly, two cutting edges of the progressive ring bite into the outer surface of the tube ensuring the holding for high tube pressure. Available in three series, DK DIN bite type tube fittings and accessories are manufactured in accordance with DIN2353/DIN EN ISO8434-1. The fittings and components in this catalog are intended solely for the assembly of connections for fluid applications.
