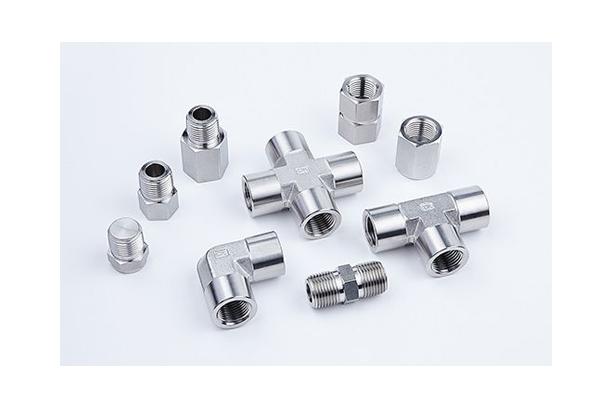

|Product Name||Instrumentation Pipe & Weld Fittings|
|Catalog||Catalog-dk-lok-Instrumentation Pipe & Weld Fittings.pdf|
Pipe thread 1/8 to 1 in.
Tube Socket Welding 1/8 to 1 in.
SS316, Brass and Carbon Steel
Thread Fittings are available 3 different ratings Standard rating, 6K, and 10K
Weld Fittings Tube Socket Weld Pipe Butt Weld
Wrench flat body design allowing standard Hex. wrench assembly.
Attractive finishes to suit precision equipment.
Much less-weight design compared to Class 3000 pipe fittings.
Fine pipe thread construction equals or exceeds the requirement of ASME B1.20.1 to ensure maximum thread engagement.
Male pipe threads capped for protection from damages.
Fitting materials available in SS316, Brass and Carbon Steel.
