Manufacturer
DASAN
Product Type
Machine
Brand
-
SKU
139672
Product Name

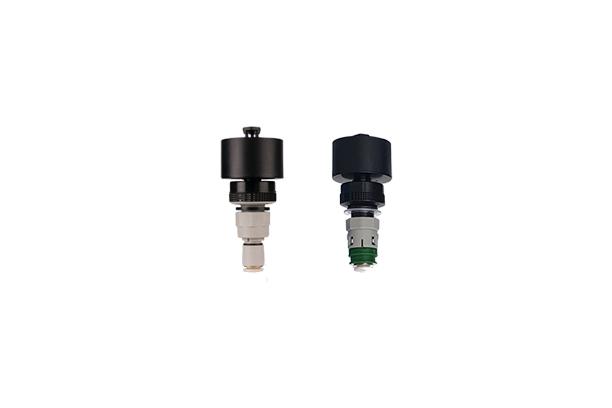

Auto Drain Float
Model Name
AD-401, AD-401(H)
Size
-
Weight
-
Product Details
AD Series 플로트
오토 드레인 플로트
Auto Drain Float
압축공기에서 제거된 응축수를 Auto Drain Trap에서 자동 배출하는 장치입니다.
원터치 피팅 장착으로 사용 편리성 강화와 조립 및 검사 전공정 자동화로 고품질의 제품을 제공합니다.
사용 압력에 맞추어 Auto Drain Trap 내부에 설치하여 사용합니다.
Technical Specifications
| Model | Pressure | Max.Pressure | Inlet Temp' | Connection | Weight(g) |
|---|---|---|---|---|---|
|
AD-401 |
1.5~9.9 ㎏f/㎠ |
9.9 ㎏f/㎠ |
60℃ |
Ø6 |
30 |
|
AD-401(H) |
1.5~15.0 ㎏f/㎠ |
15.0 ㎏f/㎠ |
60℃ |
30 |
