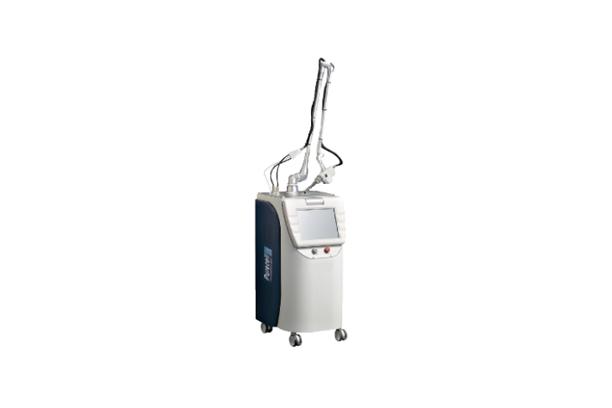

CO2 fractional laser
Qray FS is a perfect solution of all fractional procedure. In order to reduce thermal damage and to enhance the beam quality, Qray adopts 5 different scanning modes including random and double-line, and equipped with RF tube.
Excellent resurfacing procedure
Micro Thermal Hole & Adjustable dot cycles
CO2 Franctional Mode
power : 1 ~ 30 Level(step 1) Pixel Pitch : 0.1 ~ 2.0mm(step 0.1) Dot Cycle : 1 ~ 10time(step 0.1) Figure : Scanning pattern :
| Conventional CO2 Mode
Mode Operation : Single or Continuous Laser Power : 1 ~ 30 level (step 1) On time : 0.1 ~ 1 sec. (step 0.05) Pulse Mode Laser Power : 1 ~ 30 level (step 1) Frequency : 1 ~ 20 Hz (step 1) Pulse Duration : 10 ~ 50 ms (step 2) |
Specifications
Laser type: Ultra Pulse, 10600 nm
CO2 Tube: All metal sealed off waveguide RF Tube
Output Energy: 140mJ
Pulse Duration: 20 ~ 9540㎲
Scanning size: 1X1mm ~ 20X20mm
Dot Pitch: 0.1 ~ 2.0 mm
Scan mode: Standard, Refresh, Breeze, Random, Scatter
