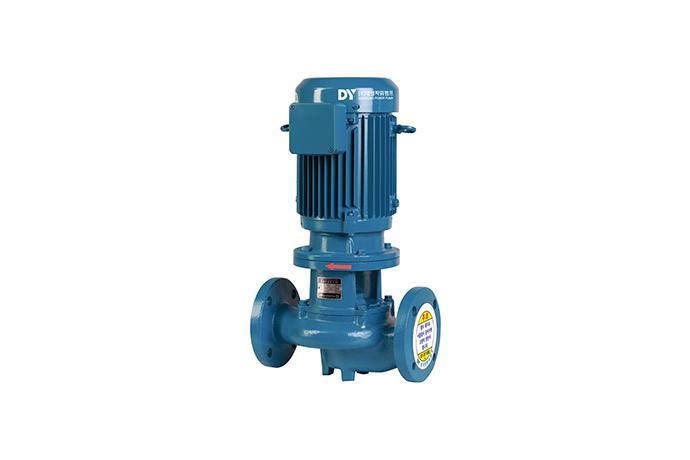

Line Pump
Model Name
DLP-L
Series
Circulation and General Pumping Pump
Data
DLP-L 라인펌프
Manufacturer information
provider logo
DAEYOUNG POWER PUMPManufacturer of Industrial, Agricultural & Construction Pump
Problem with product info?
Update request
Manufacturer
DAEYOUNG POWER PUMP
Brand
-
SKU
31698
Product Name
Line Pump
Model Name
DLP-L
Size
-
Weight
-
Product Details

-Discharge amount (m3/min)0.18 ~ 0.8㎥/m
-Total pump head (m):5 ~ 10m
-Temperature (℃) :Max. 90℃
-Number of rotations (RPM) :1750 rpm (4 Pole)
-Caliber (mm) :40 ~ 100mm



- The liquid enters the pump’s suction mouth, and the suction mouth and the discharge mouth are on opposite sides, on one line.

- It is a pump that could be installed directly on horizontal or vertical pump.


- Low lift feed head circulation

- Convection circulation, recirculation


- Guarantee of high efficiency and reliability

- The shaft seal or impeller may be replaced without the detachment of the pump casing.

- The flow with gradual with low-noise operation

- The examination, maintenance and repair of the motor, impeller and shaft are convenient.

- The product could be installed in either vertical or horizontal form.

- Dust protection is unnecessary
