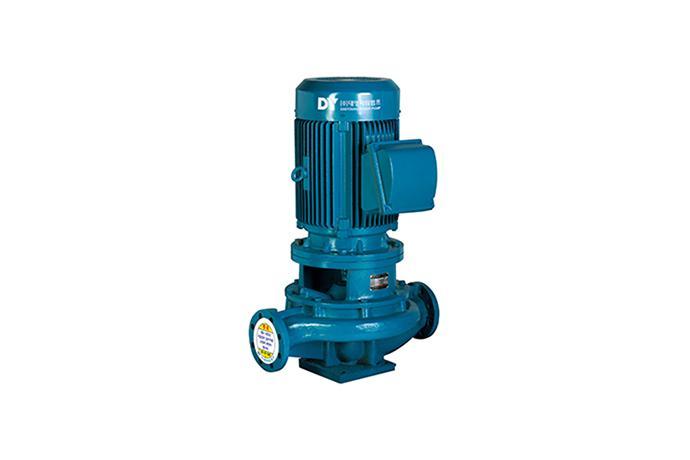

|Product Name||In-Line Pump|
|Series||Circulation and General Pumping Pump|
|Catalog||DLP In-Line Pump.pdf|
-Discharge amount (m3/min)0.07 ~ 14.4 ㎥/m
-Total pump head (m):6 ~ 50 m
-Temperature (℃) :Max. 90℃
-Number of rotations (RPM) :1750 rpm (4 Pole)
-Caliber (mm) :40 ~ 300 mm
- With the suction mouth and the discharge mouth at the opposite sides, the pump is located on a single line, being able to be installed on horizontal or vertical pipe.
- The inverter may be attached on motor, or manufactured as single panel (including inverter) type.
- Circulation of heating and cooling system
- Replacement of the vertical volute pump
- Liquid transport in the field of pressure, industrial and agricultural fields.
- Various liquid transport and pressurization
- Guarantee of high efficiency and reliability
- Shaft seal or impeller may be replaced without separation of pump casing
- The flow is gradual and the operation is low-noised
- The examination, maintenance and repair of the motor, impeller and shaft are convenient.
- The product could be installed in either vertical or horizontal form.
- Dust protection is unnecessary
