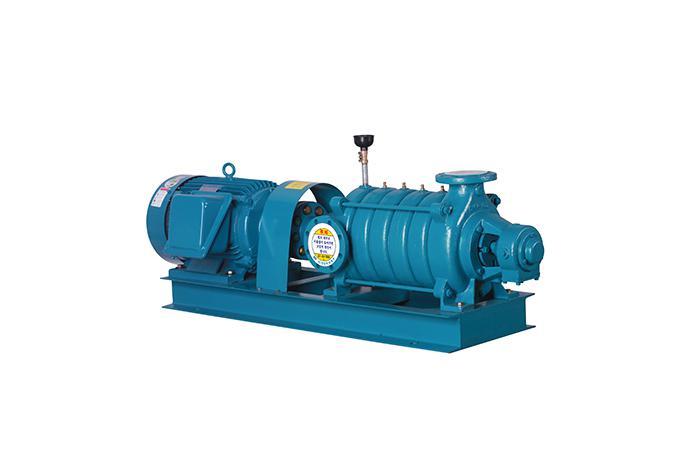

Product Name Multi Volute Pump
Model DMV
Series Pressurized Water Supply and Boiler Water Pumping Pump
Catalog DMV Multi Volute Pump.pdf
Product Description

-Discharge amount (m3/min)0.08~ 3㎥/m
-Total pump head (m):17 ~ 152 m
-Temperature (℃) :90℃
-Number of rotations (RPM) :1450, 1750 rpm (4 Pole)
-Caliber (mm) :40 ~ 150 mm





- The rotator and the volute casing is assembled in linear form, with the impeller inducing the water directly to casing.

- High lift is gained with the increased number of pumps (impellers)



- Water supply for apartment and high rise building.

- Fire hydrant and sprinkler of high rise building.

- Water supply for boiler, water-intake, irrigation water

- Drainage of high ground area such as mine.



- Double volute method was used to widen the scope of pump output with good efficiency.

- The structure was simple with good durability, with less noise due to its small size and light weight

- The compatibility of the parts is fine due to its standardized design.

- The design was made appropriately according to pump specifications, preventing overload.
