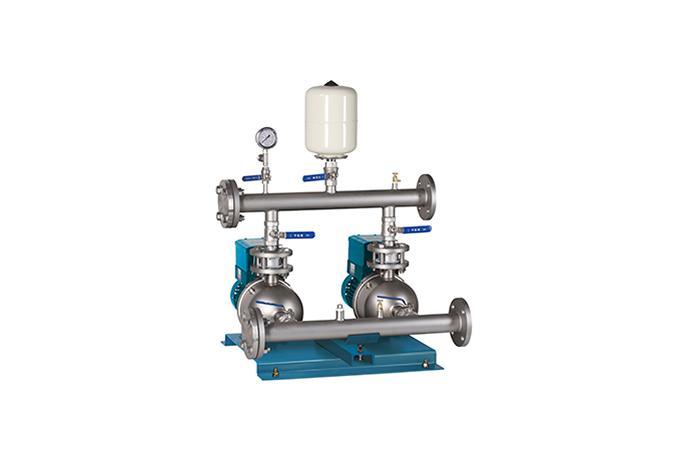

|Product Name||Horizontal 2Pump lnverter Control Pump|
|Series||Booster Pump System|
-Discharge amount (m3/min)MAX. 0.5㎥/m
-Total pump head (m):MAX. 80m
-Temperature (℃) :MAX. 90℃
-Number of rotations (RPM) :3450 rpm
-Caliber (mm) :MAX. 65mm
- It is small booster pump which is built in inverter and used for small building and home.
- It has small noise and is troubleproof product.
- It is easy to operate by installing hangul LCD screen.
- Pressurization use, water supply ( Pressurization for high rize low pressure area)
- Pressurization use for water supply of detached house and multiplex housing.
- Small sprinkler, Water treatment facility which needs to static pressure
- Pressure set function, interlock run function, rotation run function, skip run function
- Automatic reset function after blockout
- Dry running protection by accurate pressure perception
- Auto tuning function ( Automatic setting of minimum output ratio by set pressure)
- Various information and alarm data expression function by simple set screen
- Interlock running without extra control panel
- PID Controller was placed in inverter to control the number of rotation and perfect water pressure
- Complaints are prevented from low-noise and low-vibration
- Amazing energy saving is actualized by using the latest inverter control system.
- Through converting various accessories including piping into packaging, convenient installation and maintenance
- Prevention of water shock by controlling the number of inverter rotations
- Through utilizing the plastic case of the inverter, the exterior was made more beautiful and luxurious
