DAEYANG INSTRUMENT
Description

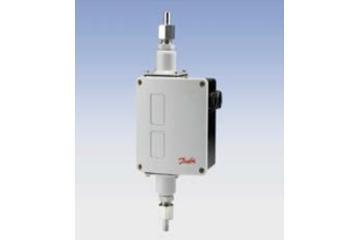

Diff pressure switch : RT type
| Model | Code No. | Operation range (bar) | Regulation range p (bar) | Mechanical differential (bar) | Max. Operation Pressure (bar) | Max. test Pressure (bar) | Weight (kg) |
| RT266AL | 1700081 | -1 -6 | 0 -0.9 | 0.05 | 7 | 8 | 1.1 |
| RT263AL | 1700045 | 0.1 -0.1 | |||||
| RT262AL | 1700043 | -1 -9 | 0.1 -1.5 | 0.01 | 11 | 13 | |
| RT262A | 1700025 | ||||||
| RT262A | 1700027 | -1 -10 | 0 -0.3 | 0.035 | |||
| RT260AL | 1700048 | -1 -18 | 0.5 -4 | 0.3 | 22 | 25 | |
| RT260A | 1700021 | ||||||
| RT260A | 1700023 | -1 -36 | 0.5 -6 | 0.5 | 42 | 47 | |
| RT260A | 1700024 | -1 -31 | 1.5 -11 | ||||
| RT265A | 1700027 | -1 -36 | 1 -6 |
