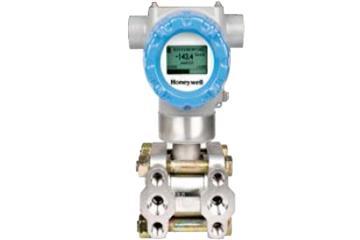

product Image
Smart Type Transmitter
Model Name
-
Series
Pressure Sensor
Data
-
Manufacturer information
provider logo
DAEYANG INSTRUMENT

Manufacturer of anemometer, anemoscope, rudder angle indicator, sensor, weather surveillance system

Problem with product info?
Update request
Manufacturer
DAEYANG INSTRUMENT
Product Type
Machine
Brand
-
SKU
89729
Product Name
Smart Type Transmitter
Model Name
-
Size
-
Weight
-
Product Details

Smart Transmitter

TYPE MODEL RANGE
Absolute pressure 722 0 ~ 1,040mbar A
740 0 ~ 35bar A
Gauge Pressure 740 0 ~ 35bar
770 0 ~ 210bar
78L 0 ~ 420bar
Differential Pressure 720 0 ~ 1,000mbar
730 0 ~ 7bar
770 0 ~ 210bar

ㆍYou can easily select the analog or digital transmission format through the smart field communicator





Type
Model

Measuring Span

Setting Range

Working Pressure Range

Absoute
pressure
JTA922A

4~104 kPa abs
(30~780mmHg abs)



0~104 kPa abs
(30~780mmHg abs)



0.01~104 kPa abs
(0.1~780mmHg abs)


JTA940A

35~3500 kPa abs
(0.35~35kgf/㎠ abs)



 0~3500 kPa abs
(0~35kgf/㎠ abs)



 0.01~3500 kPa abs
 (0.01mmHg abs
 ~35kgf/㎠ abs)


Gauge
pressure
JTG940A

35~3500 kPa
(0.35~35kgf/㎠)

-100~3500 kPa
(-1~35kgf/㎠)

2.0~3500 MPa
(15mmHg abs
~35kgf/㎠)

JTG960A

0.7~14 MPa
(7~140kgf/㎠)

-0.1~14 MPa
(-1~140kgf/㎠)

 2.0 kPa~14 Mpa
 (15mmHg abs~
 140kgf/㎠)

JTG980A

0.7~42 MPa
(7~420kgf/㎠)

-100~14 MPa
(-1~420kgf/㎠)

 2.0 kPa~42 Mpa
 (15mmHg abs~
 420kgf/㎠)

Differential
pressure
JTD920A

0.75~100 kPa
(75~10160mmHg)

-100~100 kPa
(-10160~10160mmHg)

  2.0 kPa abs~14 Mpa
 (15mmHg abs~
 140kgf/㎠)

JTG930A

35~700 kPa
(0.35~7kgf/㎠)

-100~700 kPa
(-1~7kgf/㎠)

JTG960A

0.25~14 MPa
(2.5~140kgf/㎠)

-100~14 MPa
(-1~140kgf/㎠)

 2.0 kPa abs~14 Mpa
 (15mmHg abs~
 140kgf/㎠)

* You easily selects the analog or digital transmission format through the smart field communicator.
* Maker : Yamatake

DAEYANG INSTRUMENT
Manufacturer of anemometer, anemoscope, rudder angle indicator, sensor, weather surveillance system
Daeyang Instrument Co.,Ltd. that was divided from Daeyang Electronic Co.,Ltd., which is its parent company as an individual corporation, is a company producing marine instrument. Its anemometers and anemoscopes for ship obtained an official certification from the Korea Meteorological Administration, and its other products also acquired KR classification and CE based on its accumulated technology and know-how And it established a research center to promote the development of new products that meet customer requests through the infinite investment in R&D, and it also contributes to make parts and raw materials on our own.
