CONNECTION DIAGRAM & DATA LOGGER(ACT-CB4)

E.17 Where the vessel ha s CCR, it is strongly Preferred that the CCR is equipped With an anemometer display and monitoring repeater with the capability to record (paper or digital) wind speed and direction. Dynamic Positioning (DP) vessels are Strongly Preferred to have additional anemometer displays on the bridge and in the engine control room designed to be capable of setting a minimum of two desired wind speed alarm limits with associated audible and visual alarms in the CCR and on deck if the set limits are exceeded.

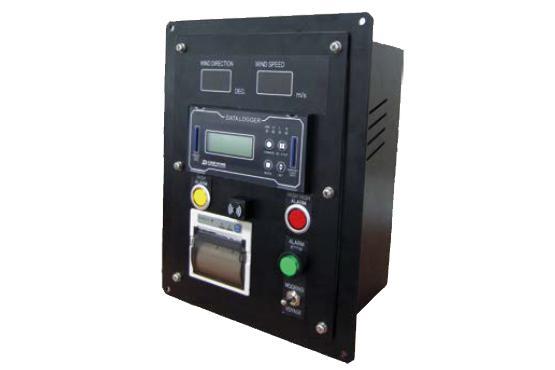

ACP-CB4

Model : ACP-CB4

Power Source : DC24V & AC220V

INPUT : Wind Speed & Direction
              GPS or Master Clock

OUTPUT : Alarm, Printer, Data Log

Alarm & Horn

Type : Explosion Proof EEx D Ⅱ CT6

Power Source : AC220V 1PH 60Hz (LAMP;12V 15W) 0.156A

Weight : 6.93kg

Sound Level : Max.113 - 118dB/m

Lamp Rotating : 120 - 140rpm

IP Grade : 66

Approval : KOSHA, ABS, KR, KMM, ATEX

Type : General

Power Source : AC220V 1PH 60Hz (LAMP ; 12V15W) 0.156A

Weight : 3.94kg

Sound Level : Max.113 -118dB/m

Lamp Rotating : 120 - 140rpm

IP Grade : 56
