product Image

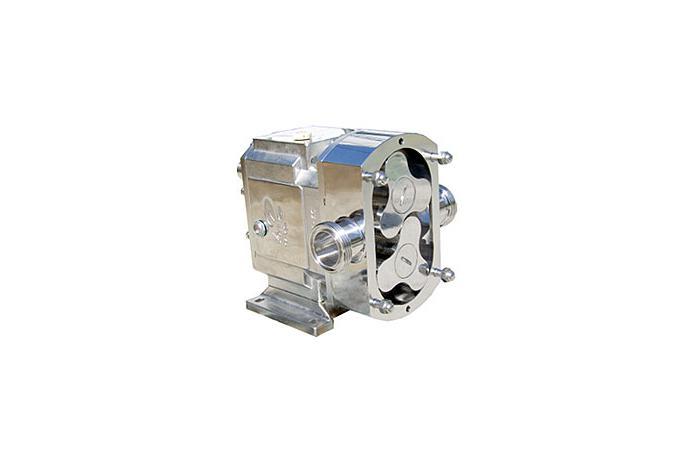

Lobe Flex (Sanitary)
Model Name
DS-L2SL
Series
Lobe Flex (Sanitary)
View All
Data
Performance Data
Manufacturer information
provider logo
DAESUNG PUMP

Industrial pump manufacturer, Gear flex pump, Reducing motor, Food machine, Grain washing machine and more

Problem with product info?
Update request
Manufacturer
DAESUNG PUMP
Product Type
Machine
Brand
-
SKU
137058
Product Name
Lobe Flex (Sanitary)
Model Name
DS-L2SL
Size
-
Weight
-
Product Details

- Displacement : 590 cc/rev.

- Pressure : Max. 30 Bar

- Viscosity : Max. 1,000,000 cp

- Temperature : Max. 200 ℃



Dimensions

A: 135mm, B : 165mm, C: 254mm, D: 43.5mm, E: 43.5mm, F: 48mm, G: 84mm, H: 160mm, I-1: 51mm, I-2: 203mm, J: 60mm, K: 38mm, L-1: 382mm, L-2: 520mm, M: 296mm, N: 10x8, O: 213mm, Diameter for 4 Holes of Base: 14mm



Applications : Beverage, Dairy, Pharmaceutical, Paste, etc.
