Feature

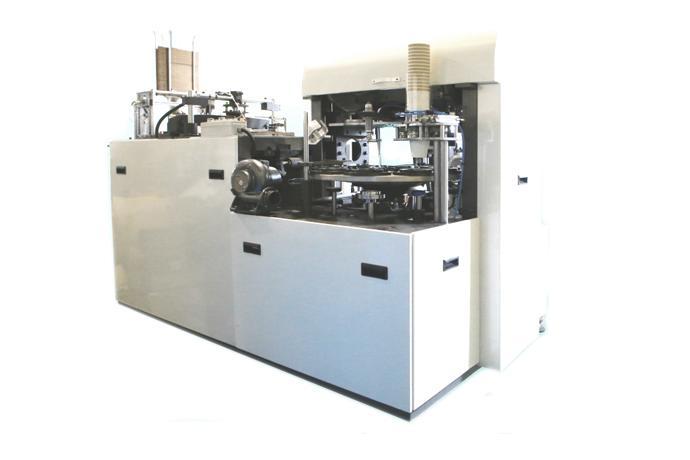

•DSN-50 is designed to make Double Layered Noodle paper cup by connecting with DSD-50.
•High performance and competitive price.
•Easy and simple operation.
•Excellent durability.
•Quick and reliable maintenance service.
Application
Double Layered paper cup for Noodle and other hot food.

Specification
| No. | Description | DSN-50A | DSN-50B |
|---|---|---|---|
| 1 | Cup Size (oz) | 2.5oz~16oz | Above 16oz |
| 2 | Application | Hot Drink/Noodle Cup | Hot Drink/Noodle Cup |
| 3 | Producton Speed | max.55~50pcs/min | max.50pcs/min |
| 4 | Sealing Method | Glue/Hot Melt/Cold Glue | Glue/Hot Melt/Cold Glue |
| 5 | Electrical Spec. | 380v/220v, 60Hz/50Hz, 4Kw | 380v/220v, 60Hz/50Hz, 4Kw |
| 6 | Air Consumption | 5.0 Hp | 5.0 Hp |
| 7 | Dimension | 2,100*1,320*1,700 | 2,800*1,500*1,700 |
| 8 | Weight | 2 MT | 2.2 MT |
| 9 | Maximum Usable Paper | 300 gram | 300 gram |
