Product Name Set anchor bolt
Model
Series Products
Catalog
Product Description

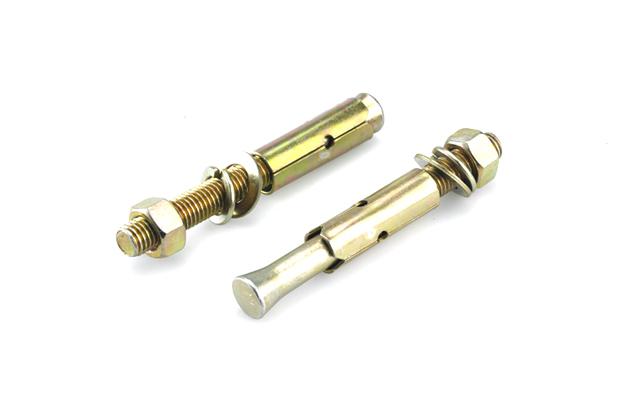

Daekwang Metal Set anchor bolt

Unit : mm

Size (A) Length of Cap (E) Length of Anchor (B) Suitable Drill Diameter (D) Drill Depth (mm)
1/4″ [M6] 30 2″ [50mm] 10 33
5/16″ [M8] 35 2-1/2″ [60mm] 12 38
3/8″ [M10] 40 3″ [70mm] 14 44
4″ [100mm]
5″ [125mm]
6″ [150mm]
8″ [200mm]
10″ [250mm]
12″ [300mm]
1/2″ [M12] 50 4″ [100mm] 17 55
5″ [125mm]
6″ [150mm]
8″ [200mm]
10″ [250mm]
12″ [300mm]
5/8″ [M16] 65 5″ [125mm] 22 65
6″ [150mm]
8″ [200mm]
3/4″ [M20] 75 6″ [150mm] 25 85
8″ [200mm]
10″ [250mm]
12″ [300mm]
