Product Name V-LOCK Nut (Type : Flange)
Model
Series Products
Catalog
Product Description

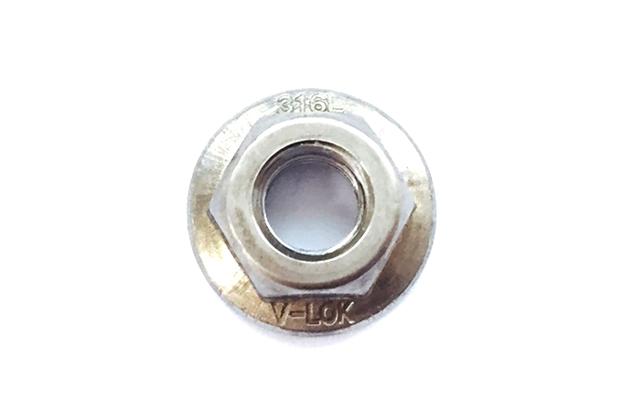

Daekwang Metal V-LOCK Nut (Type : Flange)

KS B 1043

Unit : mm

Products Type Size Pitch S e d m
V-LOCK NUT Flange M6 1 10 11.05 14 6
M8 1.25 12 13.25 17.5 8
M10 1.5 14 15.51 21 10
M12 1.75 17 18.90 25 11.5



– Material : Stainless steel, Steel, SCM, etc.
– Heat treatment, plating: It varies depending on order specifications.
