product Image

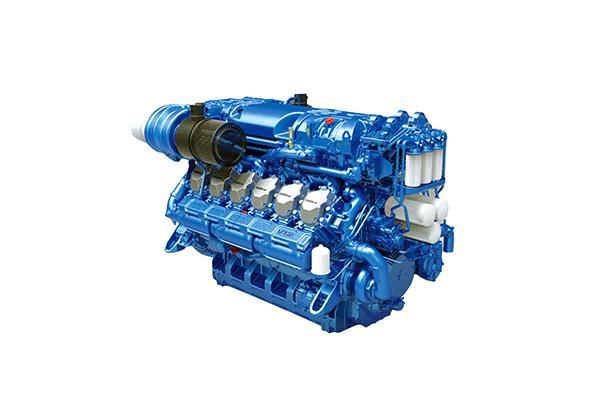

BAUDOUIN (12M26.3 1500HP)
Model Name
12M26.3
Series
수입엔진 (BAUDOUIN)
View All
Data
-
Manufacturer information
provider logo
DAEDONG MARINE TECH

Marine Engine manufacturer, generator engine, outboard engine

Problem with product info?
Update request
Manufacturer
DAEDONG MARINE TECH
Product Type
Machine
Brand
-
SKU
118827
Product Name
BAUDOUIN (12M26.3 1500HP)
Model Name
12M26.3
Size
-
Weight
-
Product Details

PRODUCT SPEC.

ENGINE MODEL12M26.3
P2P3
정격출력(Stand-by Power)HP1,3201,4001,5001,650
KW9701,0301,1041,214
회전수(RPM)1,8002,1002,2002,300
실린더수 (No. of Cylinder)12 in V @ 90°
보어x스트로크(Bore x Stroke)mm150 x 150
배기량(Displacement)cc31,801
회전방향(Rotation Direction)CCW (ISO 1204 standard)
착화순서(Firing Order)1-8-5-10-3-7-6-11-2-9-4-12
흡입방식(Aspiration)터보과급 후 냉각 (Turbocharged aftercooled)
연료소비율(Fuel Consumption)g/KWh201204209215
l/h232250275311
공회전속도(Idle Speed)RPM600
플라이휠 하우징(Flywheel Housing)SAE#0
플라이휠(Flywheel)SAE#18
해수유입구(Raw Water Inlet Size)mmØ inn 76.1
해수배출구(Raw Water Oulet Size)mmØ inn 76.1
배기구 사이즈(Exhaust Pipe Size)mmØ inn 260 / Ø out 278
크기(Dimension) (mm)Length2,333
Width1,350
Heigth1,494
중량 (Weight)KG3,215
감속장치 모델 (Reduction Gear Model)DMT600DLDMT561HLDMT550HDMT600DL
감속장치 감속비 (Reduction Gear Ratio)3.02-4.953.02-4.951.43-2.033.02-4.48
(엔진+감속기 셋트 )
Dimension (mm)		Length2,9822,8752,8052,982
Width1,3501,3501,3501,350
Heigth1,7451,7451,7401,745
중량 (Weight)KG4,5704,2304,2954,570
형식승인 2018. A:2333 B:1350 C:1494 W:3215kg
